Trail, SmartForm C3 Alloy, 142x12mm, SAVE, 1-1/8" headtube, post mount disc, StraightShot internal cable routing, dropper post compatible, KickFlip hidden 18mm 2-bolt kickstand mount port, BSA-73, 27.5" wheels (XS, S) / 29" wheels (M, L, XL)



SR Suntour XCM Boost, coil, 100mm travel, 46mm offset (29"), 80mm travel, 42mm offset (27.5")



Semi-Integrated, 1-1/8"



Shimano CUES U4000



Shimano CUES U4000, 9-speed



KMC X9, 9-speed



Prowheel, Charm 30T



Shimano CUES, 11-46, 9-speed



ProWheel, square taper



Tektro M275 hydraulic disc, 160/160mm rotors



Tektro hydraulic disc



Formula DC-51, 15x100mm





Formula DC-1422, 12x142mm



WTB SX19, 32h



Stainless Steel, 14g



2.25



27.5/29



Trail Boss 27.5x2.25" (XS,S) / 29x2.25" (M, L, XL) Comp, 30 TPI



Cannondale Riser, 6061 Alloy, 25mm rise, 8° sweep, 6° rise, 720mm



Cannondale 4, 6061 Alloy, 31.8, 6°



Cannondale



Cannondale Trail

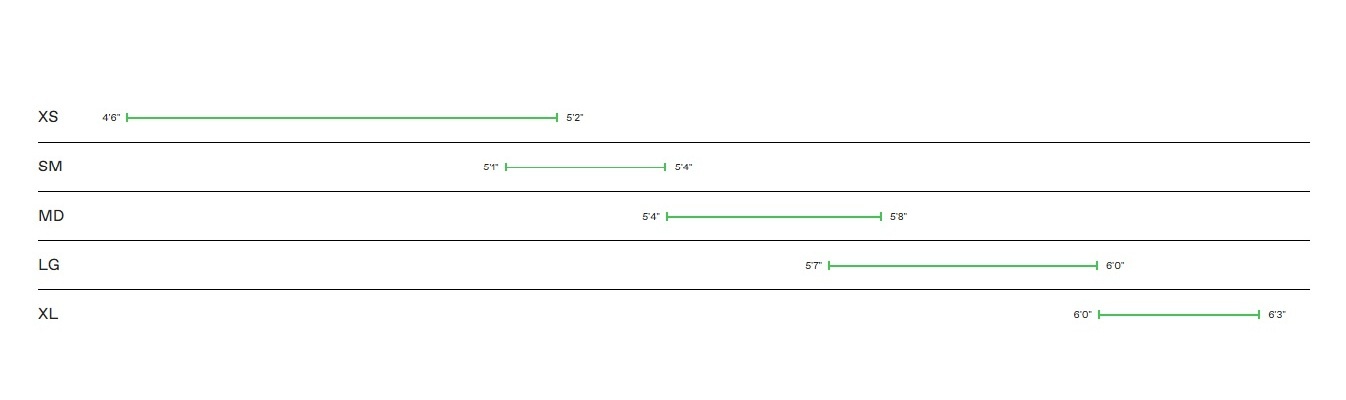

Geometry:
