Specifications:

• Frame

  Scale Alloy 6061 Custom Butted Tubing
  Syncros Cable Integration System
  BB92, QR Axle 5x141mm with 55mm Chainline

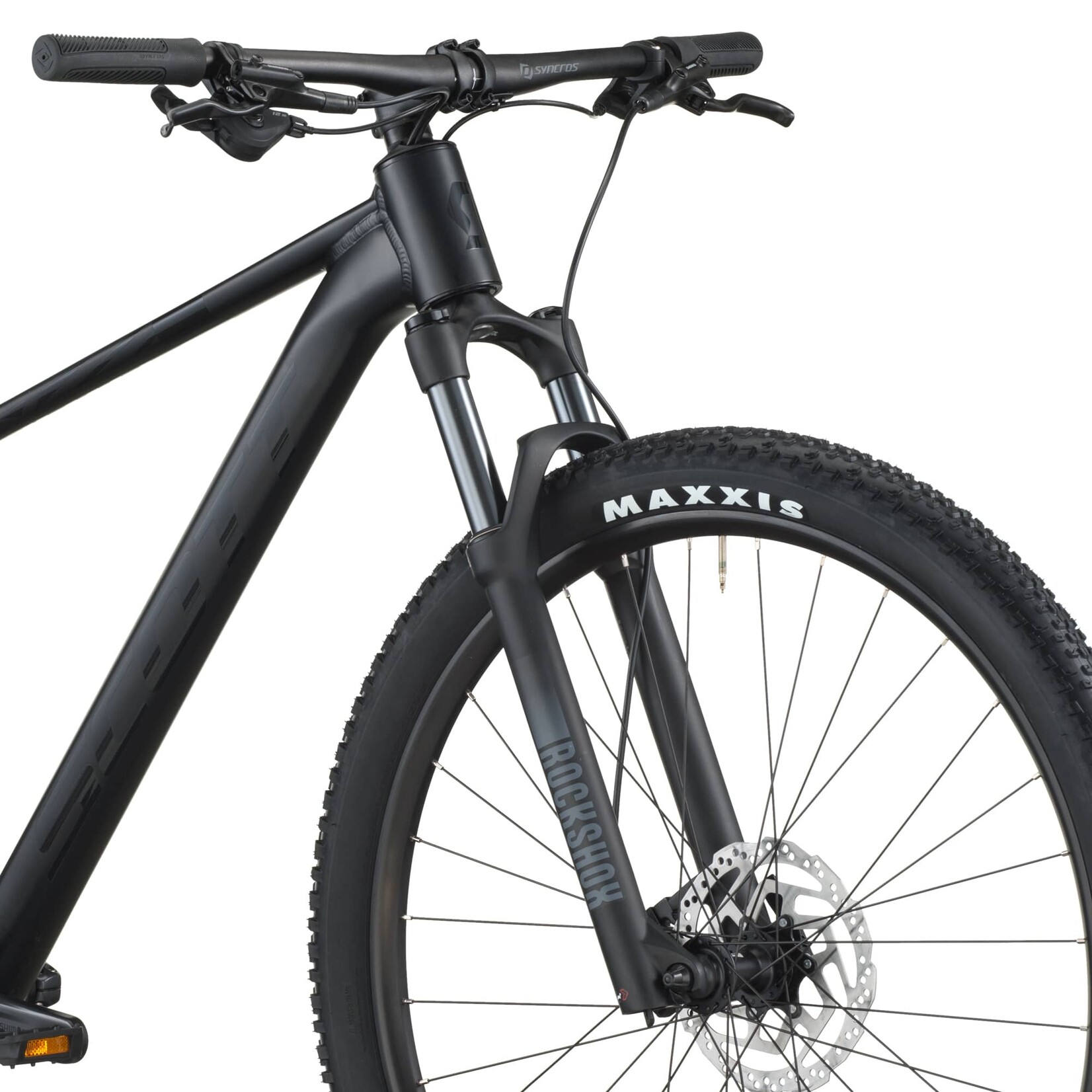

• Fork

  RockShox Judy Silver TK Coil
  QR, 51mm offset, Reb. Adj., Lockout, 100mm travel

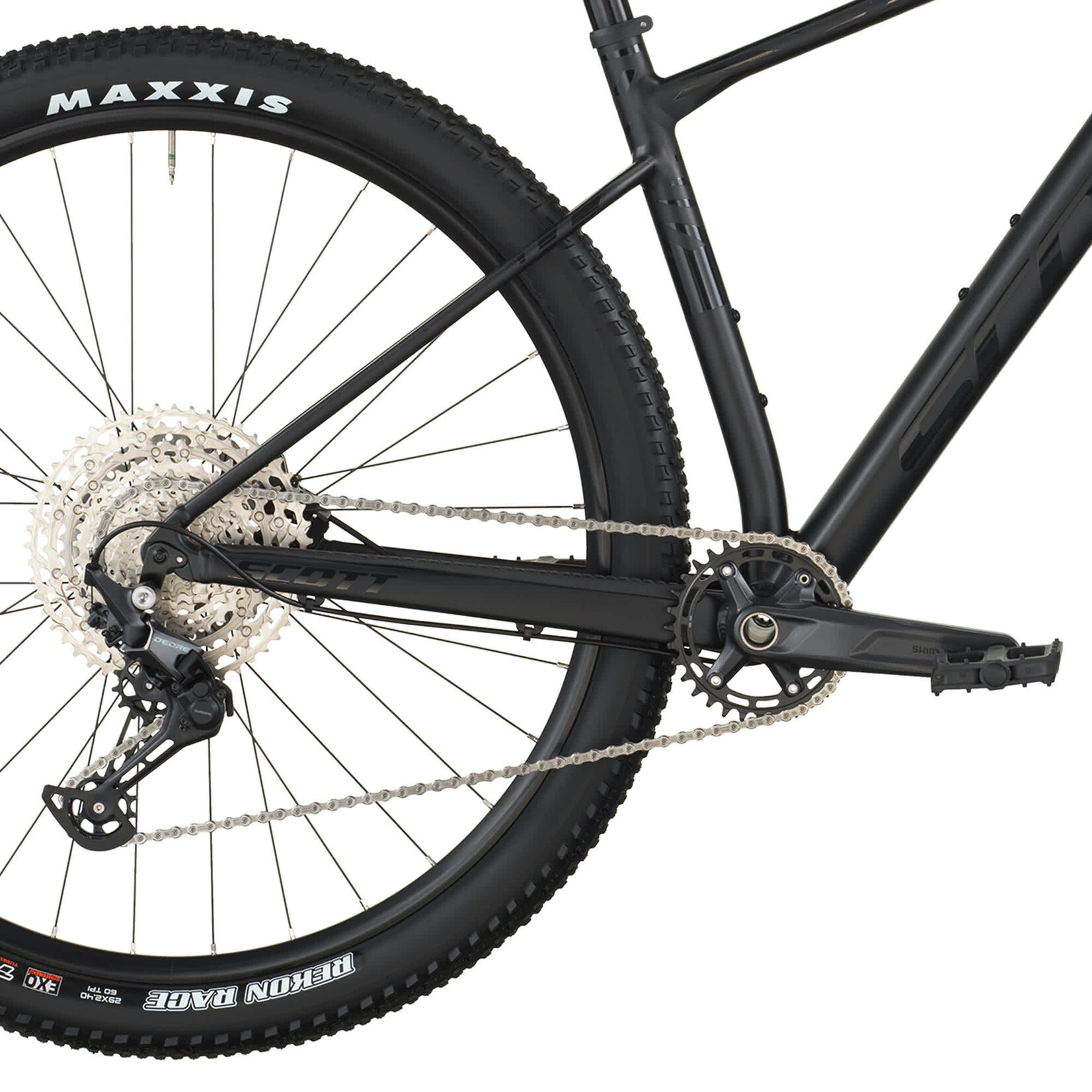

• Rear Derailleur

  Shimano Deore RD-M6100 SGS
  Shadow Plus, 12 Speed

• Shifters

  Shimano Deore SL-M6100-R, Rapidfire Plus

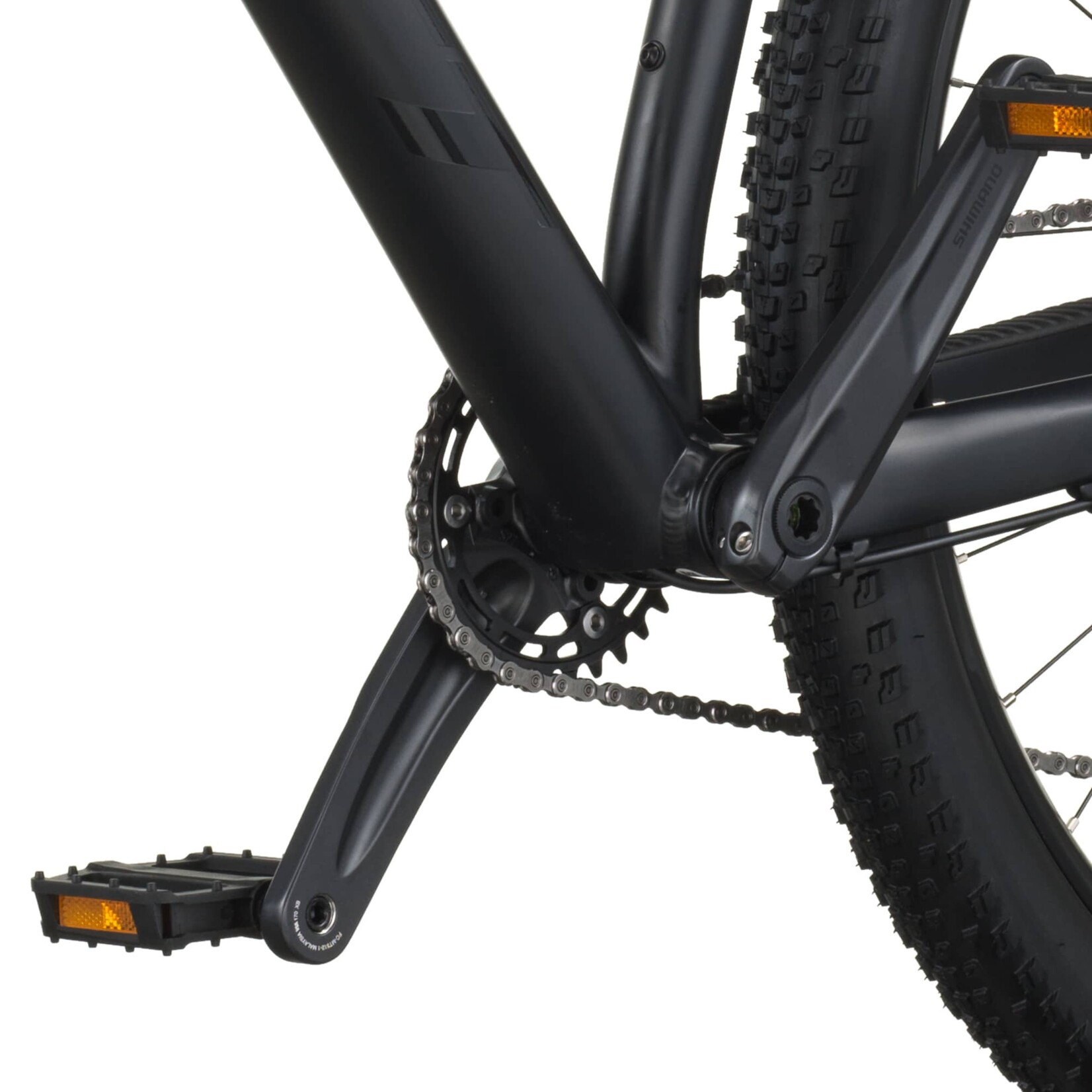

• Crankset

  Shimano FC-MT512-1
  55mm CL, 32T

• BB-Set

  Shimano BB-MT500, shell 41x92mm

• Chain

  Shimano CN-M6100

• Cassette

  Shimano Deore CS-M6100-12, 10-51 T

• Brakes

  Shimano MT200 Disc Brake

• Rotor

  Shimano SM-RT10 CL, 180/F and 160/R

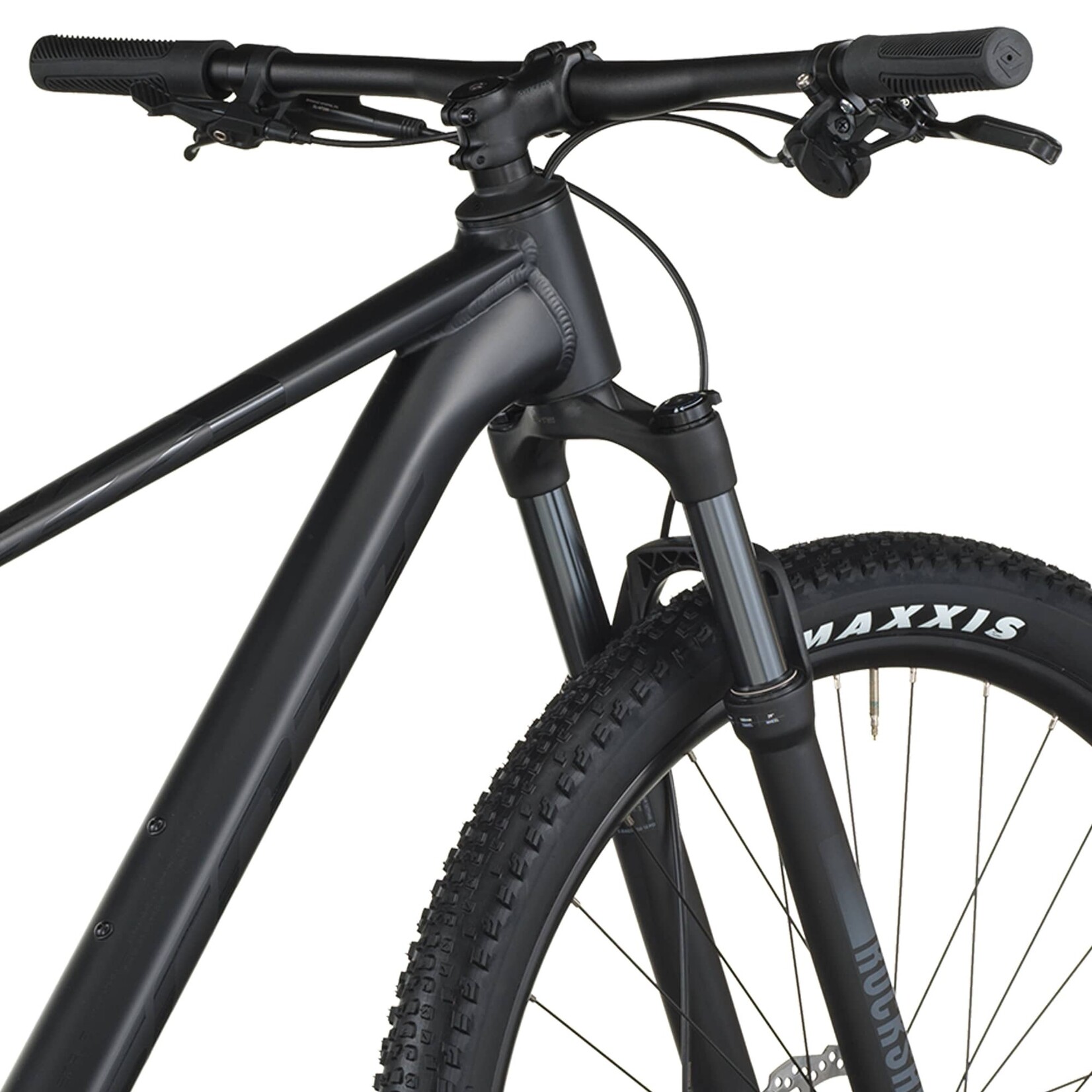

• Handlebar

  Syncros Alloy 6061
  T shape Flat, 9°, 740mm
  Syncros Performance XC lock-on grips

• H'stem

  Syncros Alloy 6061
  oversized 31.8mm, 1 1/8", 6° angle

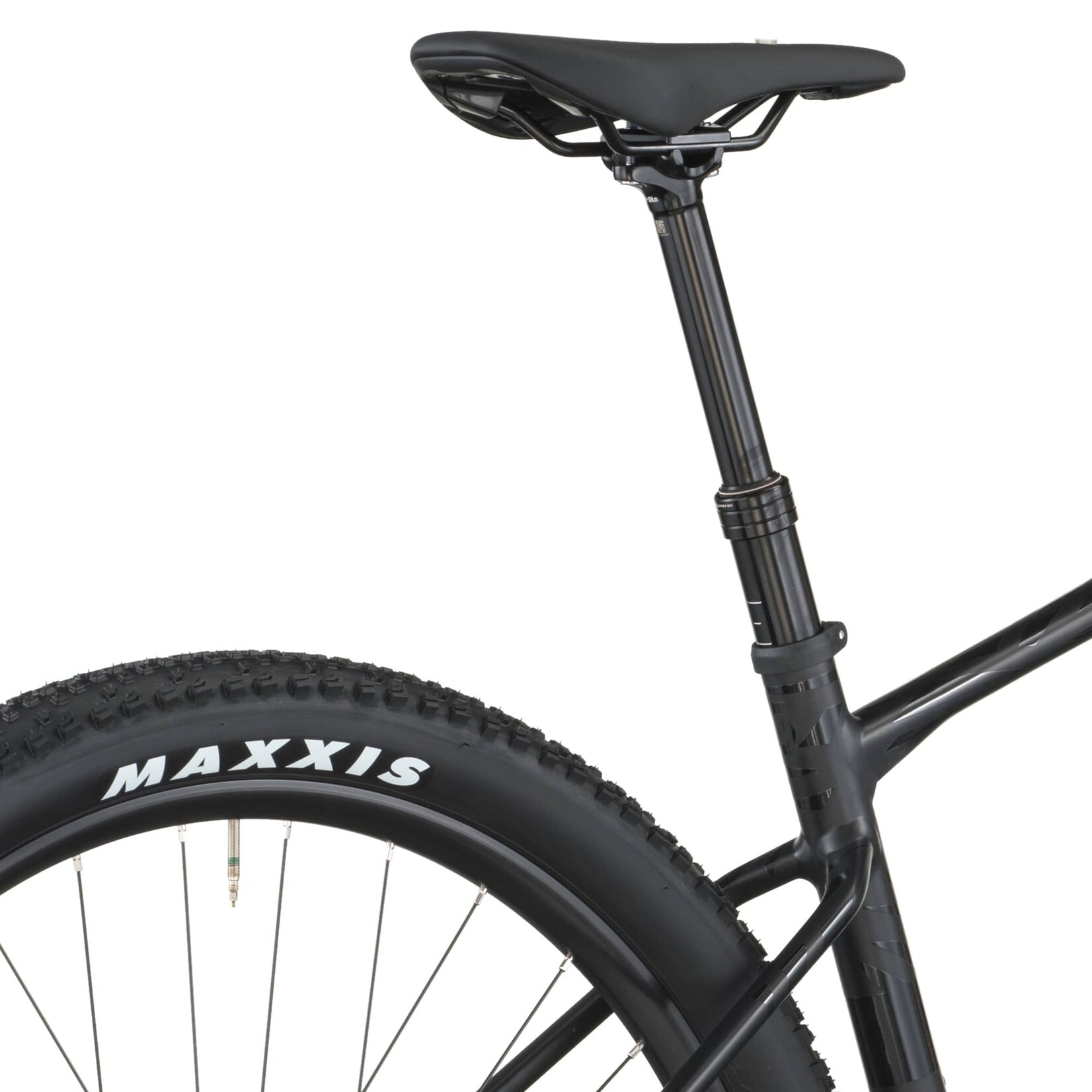

• Seatpost

  Syncros Duncan Dropper, 31.6mm
  XS&S size 100mm, M size 130mm, L &XL size 150mm

• Seat

  Syncros Belcarra Regular 2.5

• Headset

  Syncros - Acros OE Cable Routing HS System
  OD 50/62mm, ID 42/56mm

• Front Hub

  Formula CL-51

• Rear Hub

  Formula CL-541M, 5x141mm, Micro Spline

• Spokes

  Stainless Black 15G, 1.8mm

• Rims

  Alex X-25/ 32H, 25mm
  Tubeless ready

• Front Tire

  Maxxis Rekon Race, 29x2.4", EXO, Tubeless Ready

• Rear Tire

  Maxxis Rekon Race, 29x2.4", EXO, Tubeless Ready

• Approx weight in KG

  13.9 (Tubless setup without pedals)

• Approx weight in LBS

  30.64 (Tubless setup without pedals)

• Max. System Weight

  130kg
  The overall weight includes the bike, the rider, the equipment, and possible additional luggage.

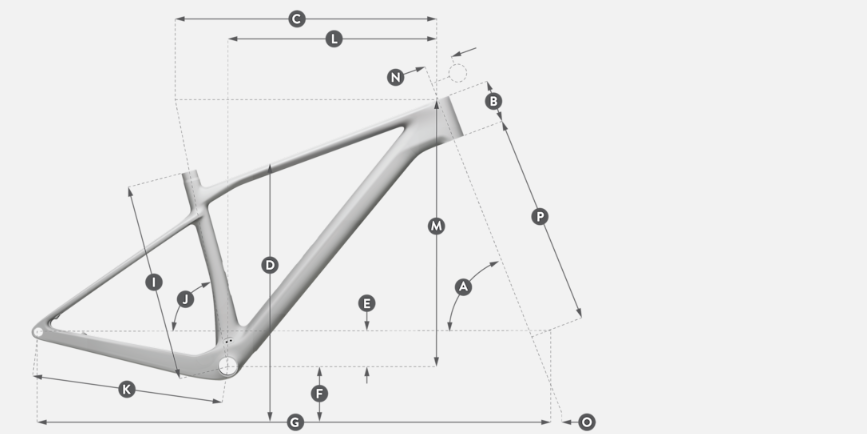

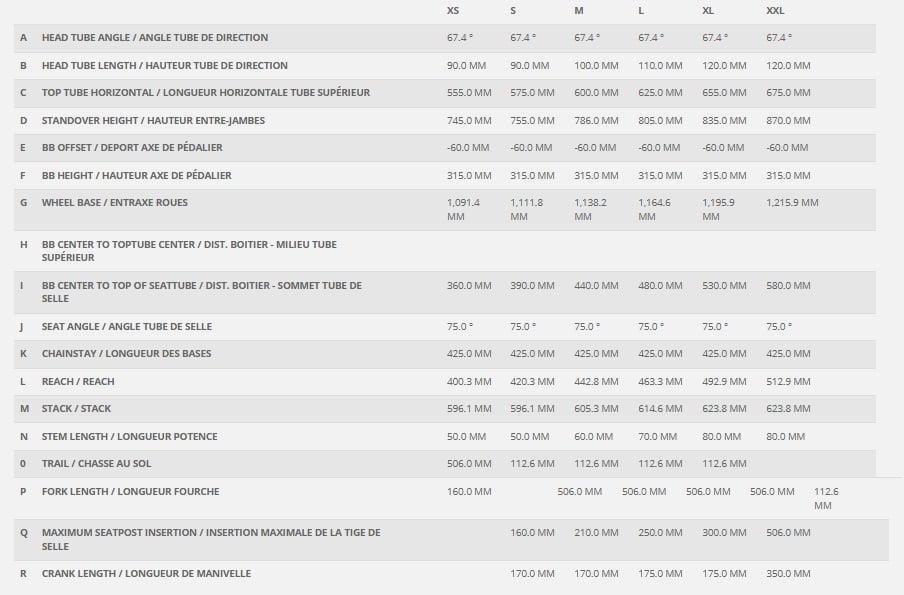

Geometry:
