  • Aventon Abound LR Ebike - Sage

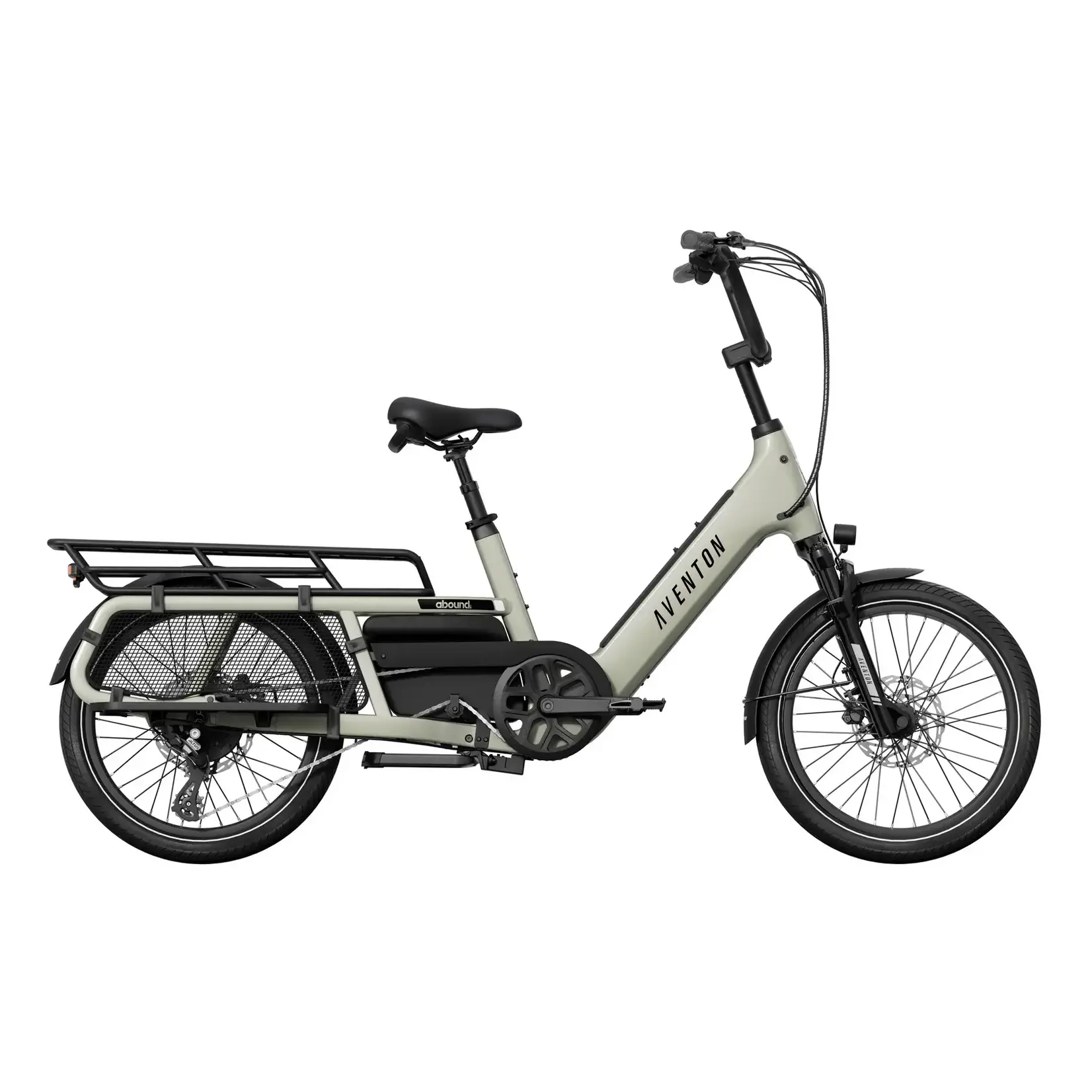

Aventon Abound LR Ebike - Sage

$1,999.99
Excl. tax

The answer to all your cargo conundrums! The 750W motor, long rear rack, and 440lb payload capacity make this the ultimate cargo carrier. Whether you're loading up the kids, or your most ambitious grocery haul, it'sready to take on any challenge.

The rating of this product is 0 out of 5

(0)
In stock (1)
TECHNICAL SPECIFICATIONS:

Model
Abound LR Ebike

Weight
88lbs

Total Weight Limit
440 lbs

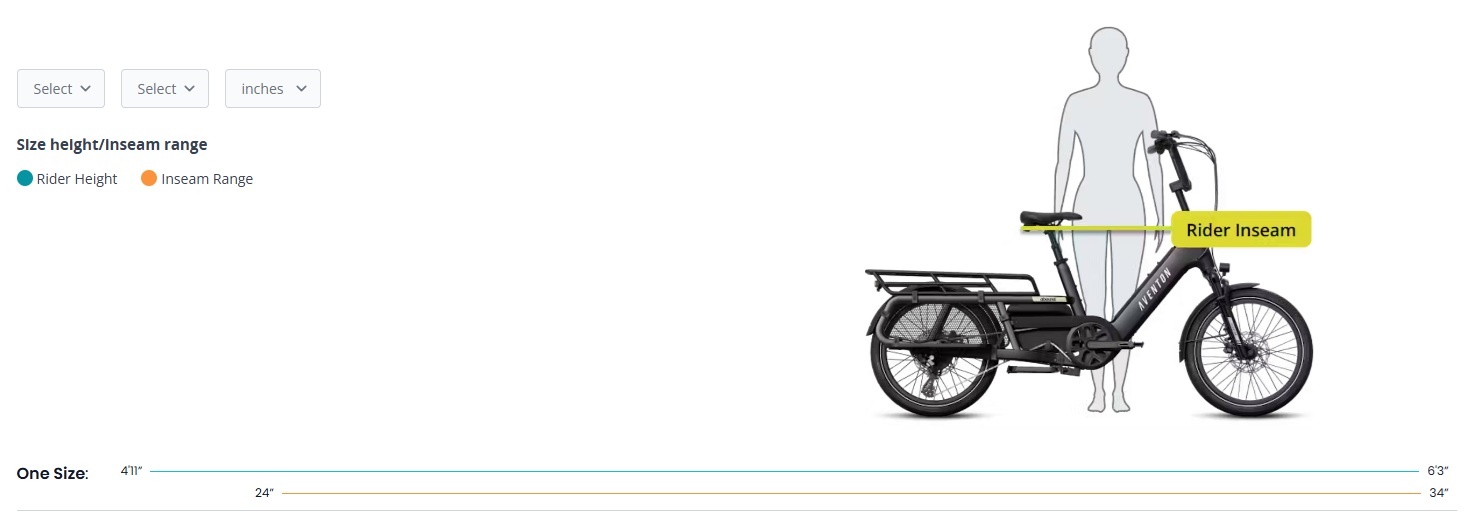

Rider Height
4'11" - 6'3"

Ebike Class
Class 2 Ebike

Range
Up to 60 miles

Battery Safety Certifications

Safety Certifications

Ideal Use
Cargo & Utility

Pedal Assist
3 Levels (with Ride Tune Customization)

Carry Capacity
Carry Up To 2 Passengers

Water Resistance
Bike - IPX5 // Components - IPX6

Frameset:

Frame
Gravity Cast 6061 Single-Butted Aluminum Alloy with Internal Battery

Fork
Threaded Steerer Tube for Quill Stem 15x110 spacing, 51mm travel, adjustable lockout black stanchions

Rear Spacing
175mm

Fork Spacing
110mm

Frame Style
Step-Through

Wheelset:

Front Wheel
Double Wall Aluminum, 20in, 36hole, 13g, 20x110 Thru Axle, Schrader Valve
Rear Wheel
Double Wall Aluminum, 20in, 36hole, 12g, Nutted Hub Drive Motor, Scharder Valve

Tires
20x3.0 Innova IA-2131 Urban Tire Refective Sidewalls

Ebike System

Motor
Shengyi 36V 750w Hub Drive with 6 speed sensors (1188W peak)

Motor Torque
80Nm

Display
Aventon BC147

Battery
Removable Internal Lithium-ion. 36V, 20Ah, 733Wh, LG 21700 cells

Battery Weight
8.7lbs

Controller
36V/33A

Throttle
Aventon LH Handlebar Mounted

Sensors
Double Sided Bottom Bracket Torque Sensor

Charger
36V Output: 42V/ 4A

Charging time from 0% to 100%
5 hours

Lights
Front and Rear Lights Integrated w/ Turn Signals

Speed
Class 2

Brakes:

Front Brake
Tektro HD-E3520 hydraulic disc brakes w/ EJ1 quick disconnect wire

Rear Brake
Tektro HD-E3520 hydraulic disc brakes w/ EJ1 quick disconnect wire

Front Brake Rotor
180mm 6 bolt

Rear Brake Rotor
203mm 6-bolt

Drivetrain

Rear Derailleur
Shimano Altus RD-M310 8 Speed

Shifter
Shimano 8 Speed Trigger SL-M315-8R

Chain
7/8 speed 154L

Cassette
12-32T / 8 Speed Shimano CS HG200-8

Chainring
52 tooth

Crank
3pc, 165mm crank arm

Bottom Bracket
Square Taper, Sealed, Dual-Sided Torque Sensor

Pedals
9/16" Composite Platform

Cockpit

Saddle
Aventon Saddle w/ grab handle by Selle Royal

Seatpost
Aventon Suspension Seatpost, Ø 30.9mm, 350mm Length. 50mm travel

Seatpost Clamp
34.9mm

Handlebars
BMX Style Aluminum 31.8mm, 720mm

Grips
Aventon Ergonomic Comfort lock on grips

Headset
H886HW Peilin 28.6mm * 56mm * 56mm H19.5mm 6pcs

Included Accessories:

Fenders
Included

Rear Rack
Included

Rear Rack Weight Limit
143 lbs

Technical Overview
The Abound LR ships as a Class II ebike, with pedal assist and throttle. The Abound will also operate with the throttle unplugged and removed, should you want to ride in an area that only allows Class I ebike or throttles are prohibited. Aventon ebikes are built to the IPX5-rated standard. An IPX5 rating means the bike is protected against low-pressure water jets from any direction. This provides a moderate level of water resistance, allowing you to ride in light to moderate rain or through small puddles. However, IPX5 does not mean waterproof—Aventon ebikes are not designed for full submersion. Avoid using a pressure washer or high-pressure sprayer to clean your ebike, as pressurized water can still damage components. *Max range determined using PAS 1 on flat terrain with a rider weight of 160 lb.*
