• A heart of gold, presented in our lightweight yet durable Premium A1 Aluminum, the Rockhopper features butted aluminum tubes in order to keep weight low and strength high, all while providing increased standover clearance, slick internal cable routing and dropper-post compatibility. With the goal of making sure that the Rockhopper offers both the best fit and best performance for every person, no matter their measure, we’ve paired each Rockhopper frame size with the optimal wheel size. The result is a Rockhopper to fit every rider and the assurance that every Rockhopper is rolling on the best-handling wheel for its frame size.
• With Rx Tune on Rockhopper, the lockout-equipped SR Suntour XCM with custom Multi-Circuit damping brings size-specific travel and spring rates to the show in a performance that’s sure to impress while also ensuring consistent geometry, handling and suspension performance, regardless of frame or wheel size.
• Beautifully beastly, Tektro HD-M275 hydraulic disc brakes pack a mean bite but deliver their power with a refined, intuitive feel to make for a package that punches way above its pay grade.
• Keep things simple with a durable 1x MicroSHIFT drivetrain that offers plenty of range along with a clutch-equipped rear derailleur that keeps your ride quiet—and your chain on.
• Pair dead-reliable hubs from Shimano with our 25-millimeter internal diameter, hookless Stout rims for a wheelset hat-trick: strong, light and durable.

Size Chart:

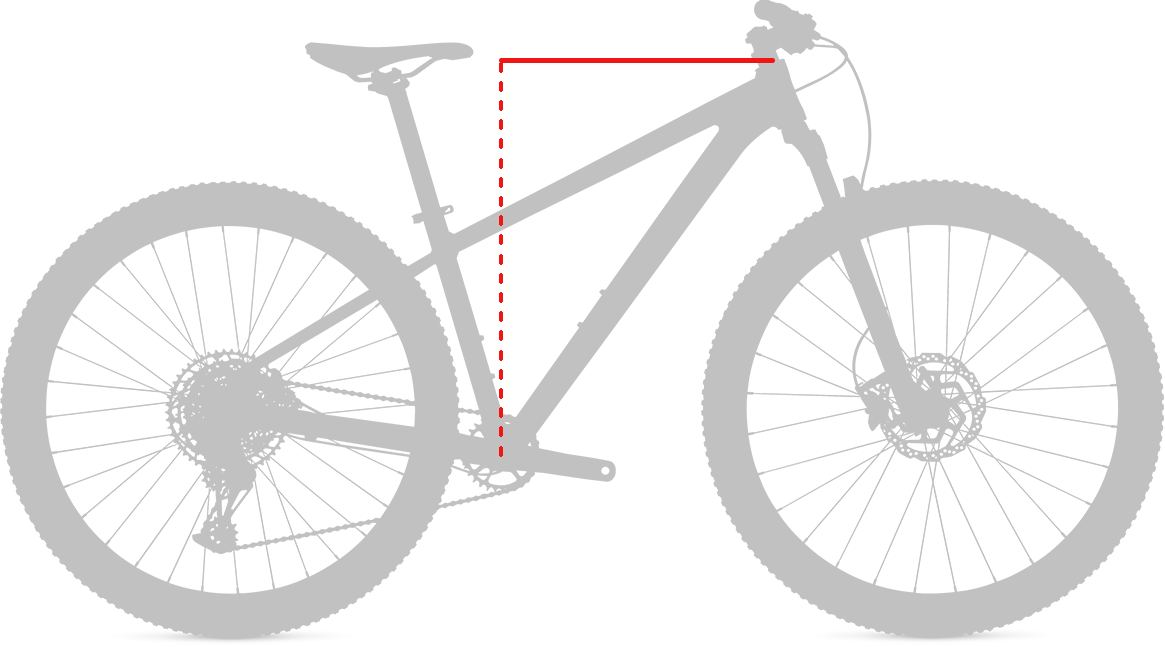

Rockhopper Comp Geometry

	S	M	L	XL	XXL
Crank Length	170mm	170mm	175mm	175mm	175mm
Handlebar Width	720mm	740mm	740mm	740mm	740mm
Stem Length	45mm	60mm	60mm	70mm	70mm
Saddle Width	155mm	143mm	143mm	143mm	143mm
Seatpost Length	350mm	400mm	400mm	400mm	400mm
Stack	607mm	616mm	626mm	640mm	654mm
Reach	405mm	425mm	445mm	465mm	485mm
Head-Tube Length	95mm	95mm	105mm	120mm	135mm
Head-Tube Angle	68.5°	68.5°	68.5°	68.5°	68.5°
B-B Height	310mm	310mm	310mm	310mm	310mm
B-B Drop	62mm	62mm	62mm	62mm	62mm
Trail	97mm	97mm	97mm	97mm	97mm
Fork Length (full)	505mm	515mm	515mm	515mm	515mm
Fork Rake/Offset	46mm	46mm	46mm	46mm	46mm
Front-Center	672mm	696mm	719mm	745mm	770mm
Chain-Stay Length	440mm	440mm	440mm	440mm	440mm
Wheelbase	1105mm	1128mm	1152mm	1178mm	1203mm
Top-Tube Length (horizontal)	586mm	608mm	630mm	654mm	679mm
Bike Stand-Over Height	732mm	754mm	781mm	820mm	853mm
Seat-Tube Length	360mm	400mm	450mm	500mm	560mm
Seat-Tube Angle	73.5°	73.5°	73.5°	73.5°	73.5°
