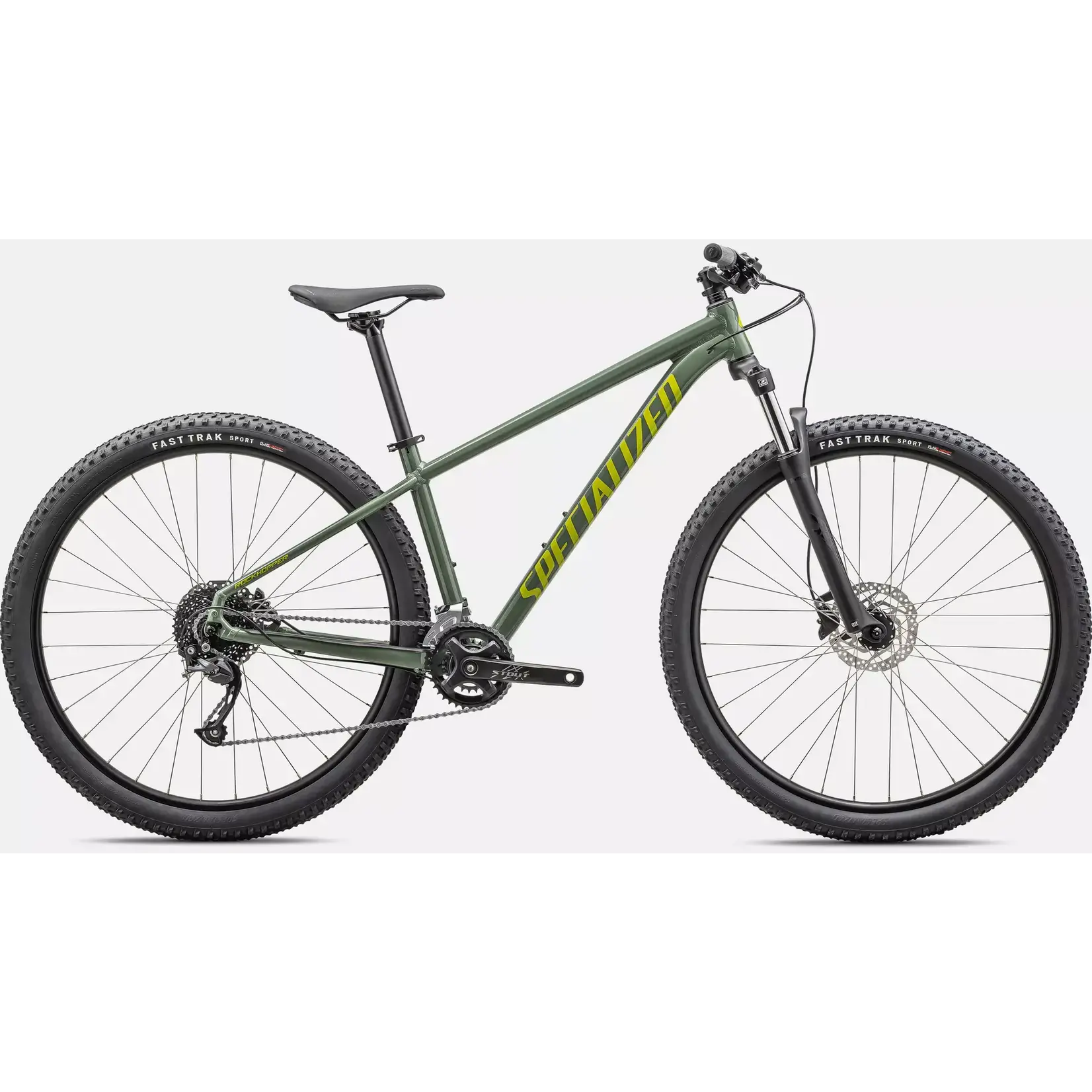

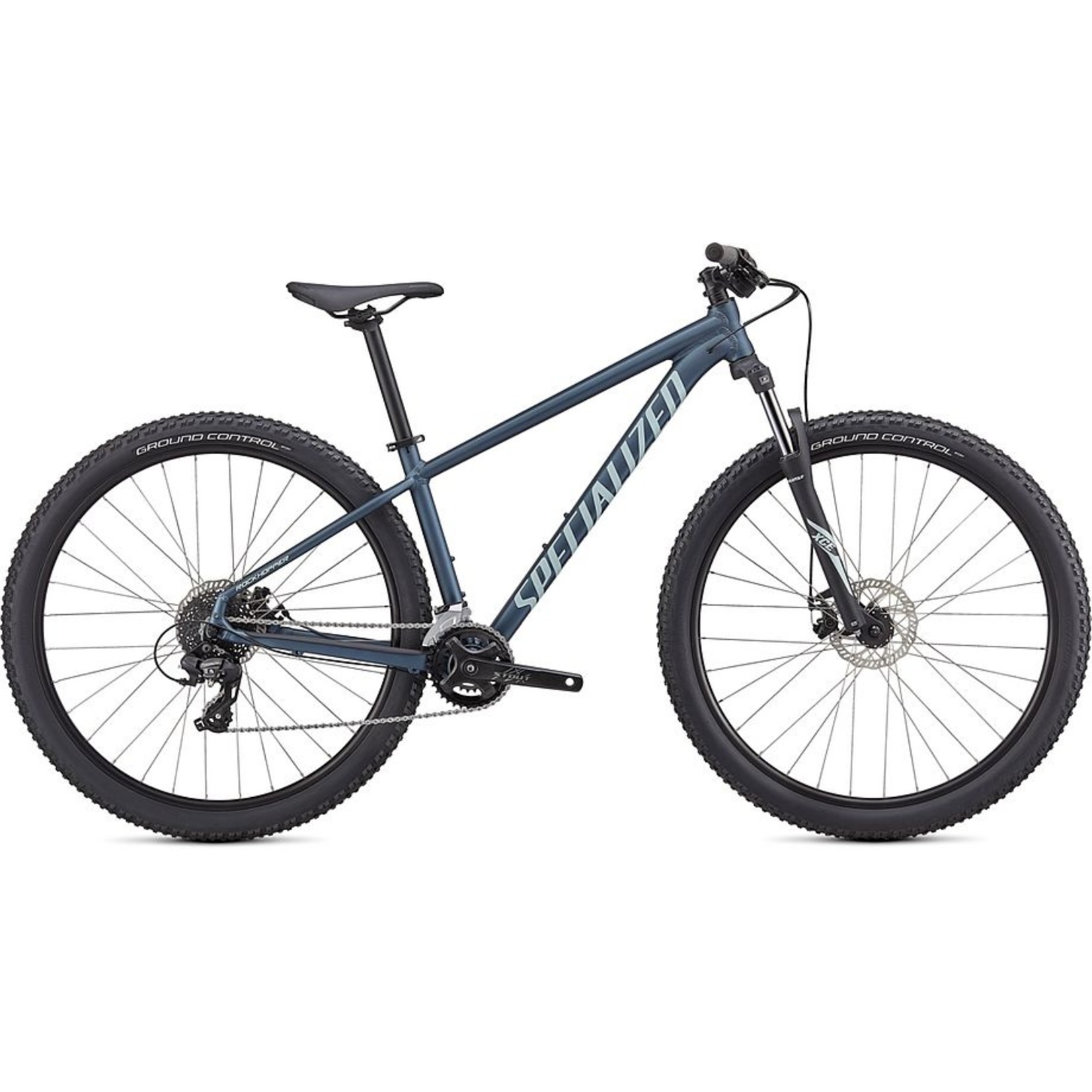

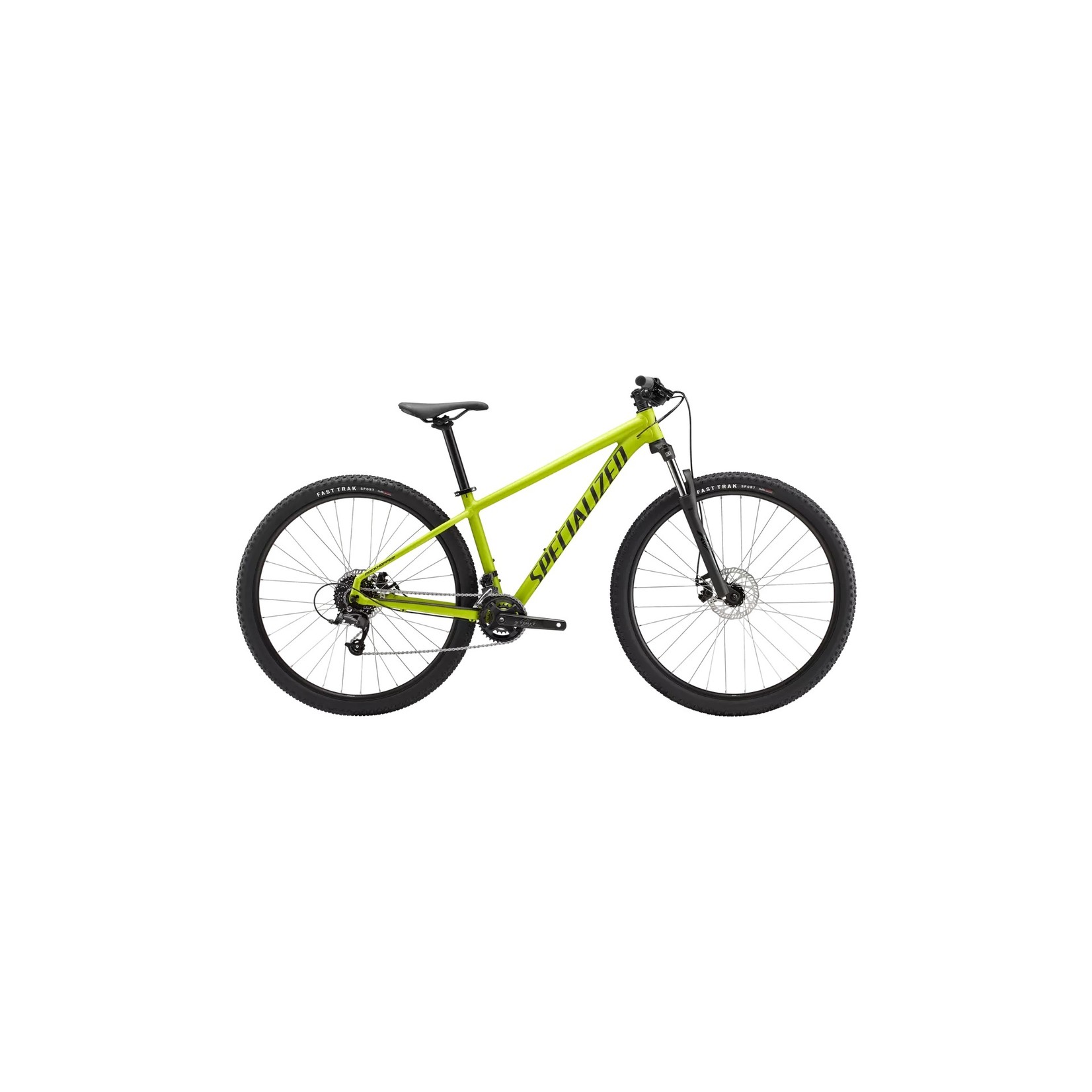

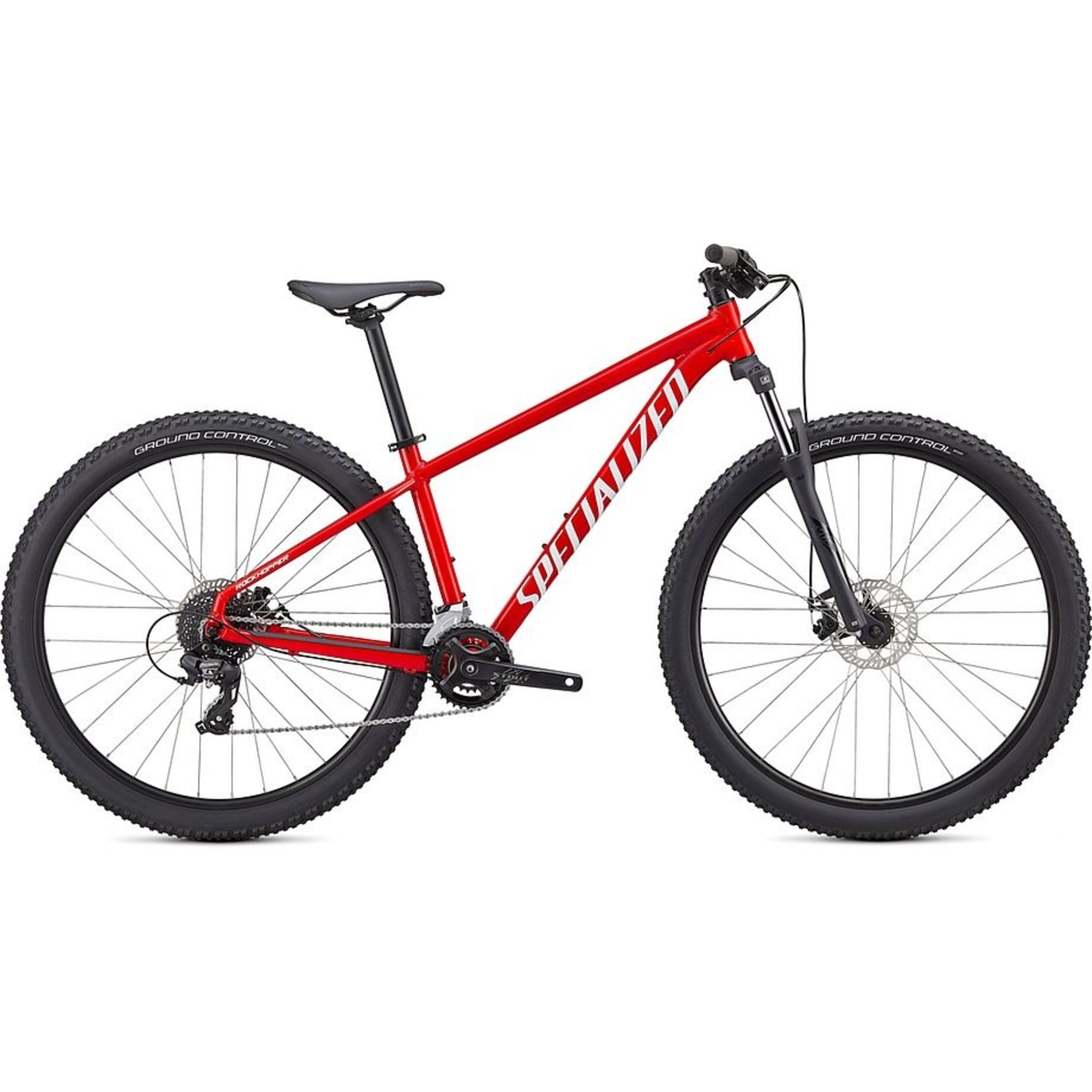

Specialized Rockhopper 29

$699.99

Excl. tax

Better performance. Better value. Better Rockhopper. By tapping the fit and handling advantages of pairing each rider with their ideal wheel size and suspension that works its hardest for everyone.

With Rx Tune on Rockhopper, the SR Suntour XCE brings size-specific travel and spring rates to the show in a performance that’s sure to impress while also ensuring consistent geometry, handling and suspension performance, regardless of frame size.
Radius CX-7 disc brakes offer confident, consistent braking in any trail condition.
A durable Formula freehub and SunRace 8-speed cassette keep you rolling smoothly without putting up a fuss.

Size Chart:

DRIVETRAIN

Crankset

Stout 2x, forged alloy

Bottom Bracket

Square-tapered, 73mm, internal bearings, 122.5mm spindle

Shift Levers

microSHIFT, TS39-8R, 2x8-speed

Cassette

SunRace, 8-speed, 11-34t

Rear Derailleur

microSHIFT Mezzo 8-speed

Chain

KMC X8 EPT, anti-rust coating, 8-speed w/ reusable Missing Link™

Front Derailleur

microSHIFT Marvo 2x8

WHEELS

Spokes

Stainless, 14g

Front Tire

Ground Control Sport, 29x2.3"

Rear Hub

Formula SP-2125, 6-Bolt freehub, disc, 135x9mm spacing, quick-release

Inner Tubes

Schrader, 40mm valve

Front Hub

Formula 6-Bolt, disc, 100x9mm spacing, quick-release, 32H

Rims

Specialized alloy, disc only, double-wall, 25mm inner width, 32h

Rear Tire

Ground Control Sport, 29x2.3"

FRAMESET

Seat Binder

Alloy, quick release, 34.9

Frame

Specialized A1 premium butted alloy, zero-stack head tube, internal cable routing, 135x9mm forged dropouts, chainstay-mounted disc brake, replaceable alloy derailleur hanger, stealth rack mounts, dropper post compatible

BRAKES

Front Brake

Radius CX7, mechanical disc, 160mm

Rear Brake

Radius CX7, mechanical disc, 160mm

COCKPIT

SeatPost

Alloy, 2-bolt clamp, 30.9mm

Stem

Stout 3D-forged alloy, 31.8mm, 6-degree rise

Grips

Specialized Trail Grips, lock-on

Saddle

Bridge Sport, steel rails

Handlebars

Specialized, alloy, 9-degree backsweep, 15mm rise, 31.8mm

ACCESSORIES

Pedals

SBC-54 Flat pedal

Suspension

Fork

SR Suntour XCE 29, 28mm stanchions, Rx Tune, coil spring, QR, 90/100mm travel (size-specific), 46mm offset

* Specifications are subject to change

Rockhopper Geometry

	S	M	L	XL	XXL
Crank Length	170mm	170mm	175mm	175mm	175mm
Handlebar Width	720mm	740mm	740mm	740mm	740mm
Stem Length	45mm	60mm	60mm	70mm	70mm
Saddle Width	155mm	143mm	143mm	143mm	143mm
Seatpost Length	350mm	400mm	400mm	400mm	400mm
Stack	607mm	616mm	626mm	640mm	654mm
Reach	405mm	425mm	445mm	465mm	485mm
Head-Tube Length	95mm	95mm	105mm	120mm	135mm
Head-Tube Angle	68.5°	68.5°	68.5°	68.5°	68.5°
B-B Height	310mm	310mm	310mm	310mm	310mm
B-B Drop	62mm	62mm	62mm	62mm	62mm
Trail	97mm	97mm	97mm	97mm	97mm
Fork Length (full)	505mm	515mm	515mm	515mm	515mm
Fork Rake/Offset	46mm	46mm	46mm	46mm	46mm
Front-Center	672mm	696mm	719mm	745mm	770mm
Chain-Stay Length	440mm	440mm	440mm	440mm	440mm
Wheelbase	1105mm	1128mm	1152mm	1178mm	1203mm
Top-Tube Length (horizontal)	586mm	608mm	630mm	654mm	679mm
Bike Stand-Over Height	732mm	754mm	781mm	820mm	853mm
Seat-Tube Length	360mm	400mm	450mm	500mm	560mm
Seat-Tube Angle	73.5°	73.5°	73.5°	73.5°	73.5°
