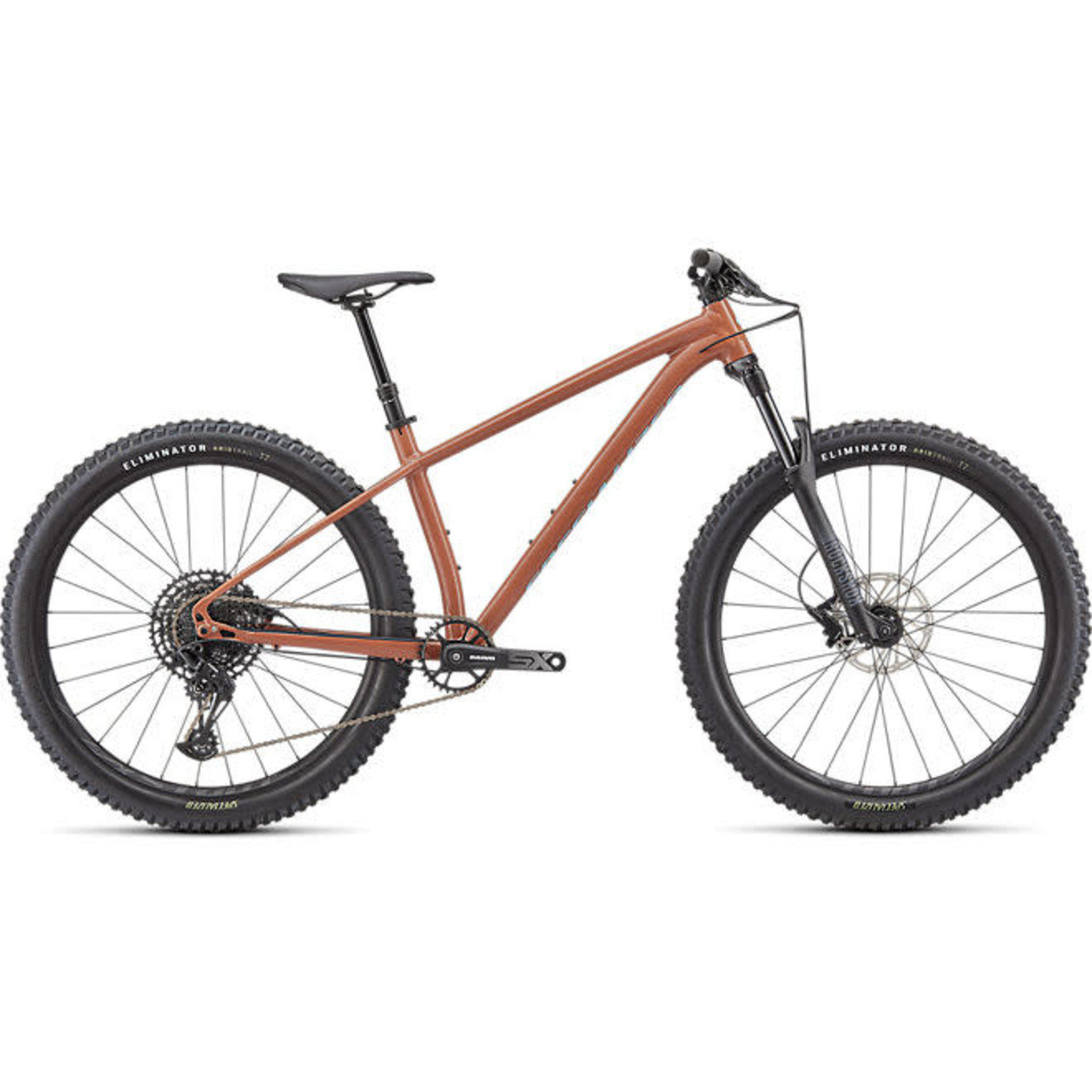

Specialized Fuse Sport 27.5

$2,400.00

Excl. tax

The Fuse is loaded with smart touches. The low-slung top tube improves maneuverability on tight trails. And while this Fuse’s 27.5x2.6 tires give it traction and stability, it’s also compatible with 29er wheels and tires.

130-millimeters of suspension courtesy of a RockShox Judy Silver TK fork.
Highlights include SRAM Level hydraulic disc brakes and TranzX dropper post.
Wide-range SRAM SX 1X drivetrain provides crisp shifts and gearing to tackle any hill.

Size Chart:

Fuse Sport 27.5 Technical Specifications

FRAMESET

Frame

Specialized A1 Premium Aluminum, 148mm thru-axle, tapered head tube, internal cable routing

Seat Binder

Alloy, 38.6mm

Suspension

Fork

RockShox Judy Silver TK, air spring, 42mm offset, 130mm of travel

COCKPIT

Stem

Stout 3D-forged alloy, 31.8mm, 6-degree rise

Handlebars

Stout Riser, double-butted alloy, 9-degree backsweep, 5-degree upsweep, 15mm rise, 750mm / 780mm width, 31.8mm

Tape

Specialized Trail Grips

Saddle

Body Geometry Bridge Saddle, steel rails

SeatPost

TranzX Dropper, 30.9mm, XS-S: 100mm, M-XL: 120mm

BRAKES

Front Brake

SRAM Level, hydraulic disc, 180/160mm

Rear Brake

SRAM Level, hydraulic disc, 160mm

DRIVETRAIN

Rear Derailleur

SRAM SX Eagle, 12-speed

Shift Levers

SRAM SX Eagle, trigger, 12-speed

Cassette

SRAM PG-1210 Eagle, 11-50t

Chain

SRAM, SX Eagle, 12-speed

Crankset

SRAM, SX Eagle, 12-speed Boost, Powespline, 32T

Bottom Bracket

SRAM Powerspline

WHEELS

Rims

Alloy, disc only, double-wall, 29mm internal width, 28h, tubeless compatible

Front Hub

Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h

Rear Hub

Alloy, sealed cartridge bearings, 12x148mm thru-axle, 28h

Spokes

Stainless, 14g

Front Tire

Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5x2.6"

Rear Tire

Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5x2.6"

Inner Tubes

Presta, 40mm valve

* Specifications are subject to change without notice

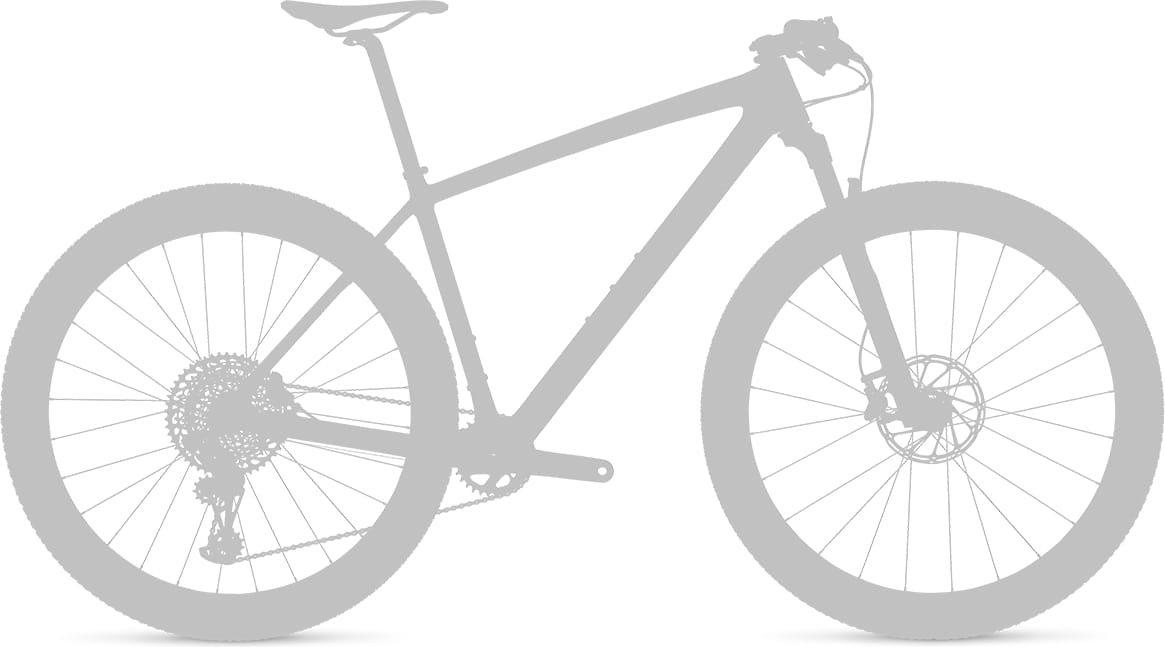

Fuse Sport 27.5 Geometry

	XS	S	M	L	XL
Crank Length	170mm	170mm	170mm	170mm	175mm
Handlebar Width	750mm	750mm	780mm	780mm	780mm
Stem Length	45mm	45mm	45mm	45mm	45mm
Saddle Width	155mm	143mm	143mm	143mm	143mm
Seatpost Length	360mm	360mm	400mm	400mm	400mm
Stack	603mm	603mm	603mm	615mm	630mm
Reach	400mm	420mm	440mm	460mm	480mm
Head-Tube Length	105mm	105mm	105mm	120mm	135mm
Head-Tube Angle	66°	66°	66°	66°	66°
B-B Height	315mm	315mm	315mm	315mm	315mm
B-B Drop	48mm	48mm	48mm	48mm	48mm
Trail	113mm	113mm	113mm	113mm	113mm
Fork Length (full)	520mm	520mm	520mm	520mm	520mm
Fork Rake/Offset	42mm	42mm	42mm	42mm	42mm
Front-Center	695mm	715mm	735mm	761mm	787mm
Chain-Stay Length	430mm	430mm	430mm	430mm	430mm
Wheelbase	1120mm	1140mm	1160mm	1186mm	1213mm
Top-Tube Length (horizontal)	573mm	593mm	613mm	637mm	661mm
Bike Stand-Over Height	717mm	736mm	739mm	744mm	789mm
Seat-Tube Length	340mm	375mm	410mm	455mm	505mm
Seat-Tube Angle	74°	74°	74°	74°	74°
