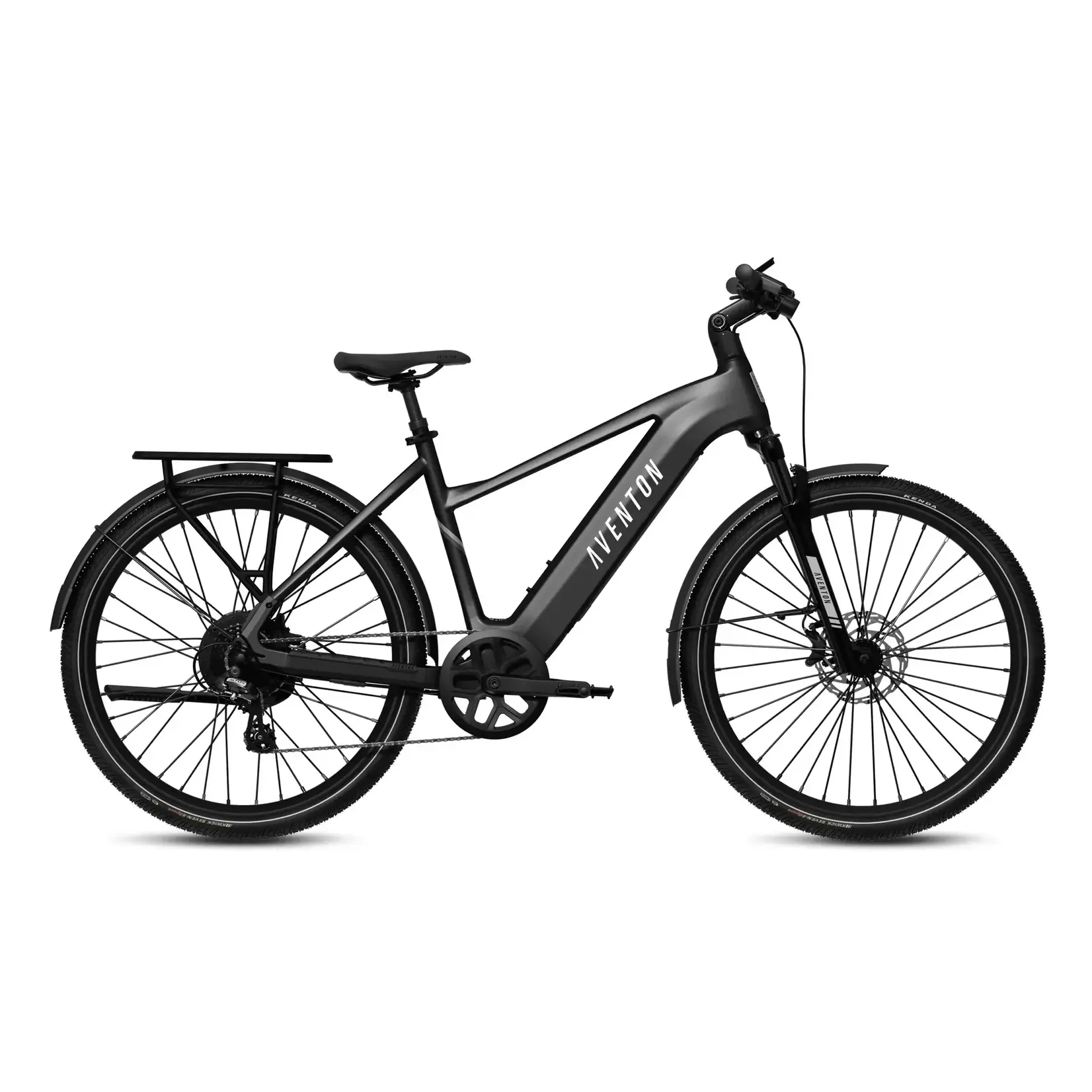

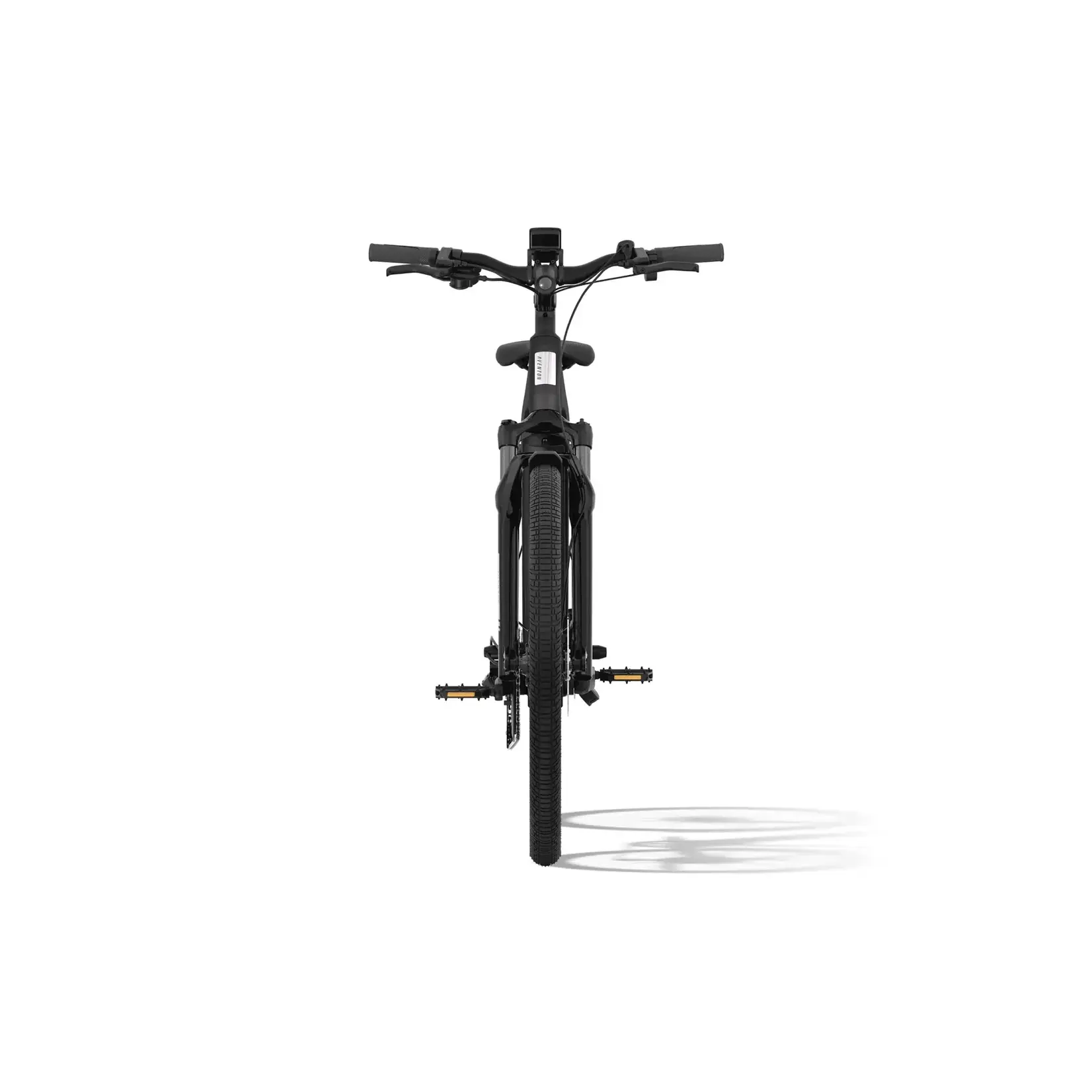

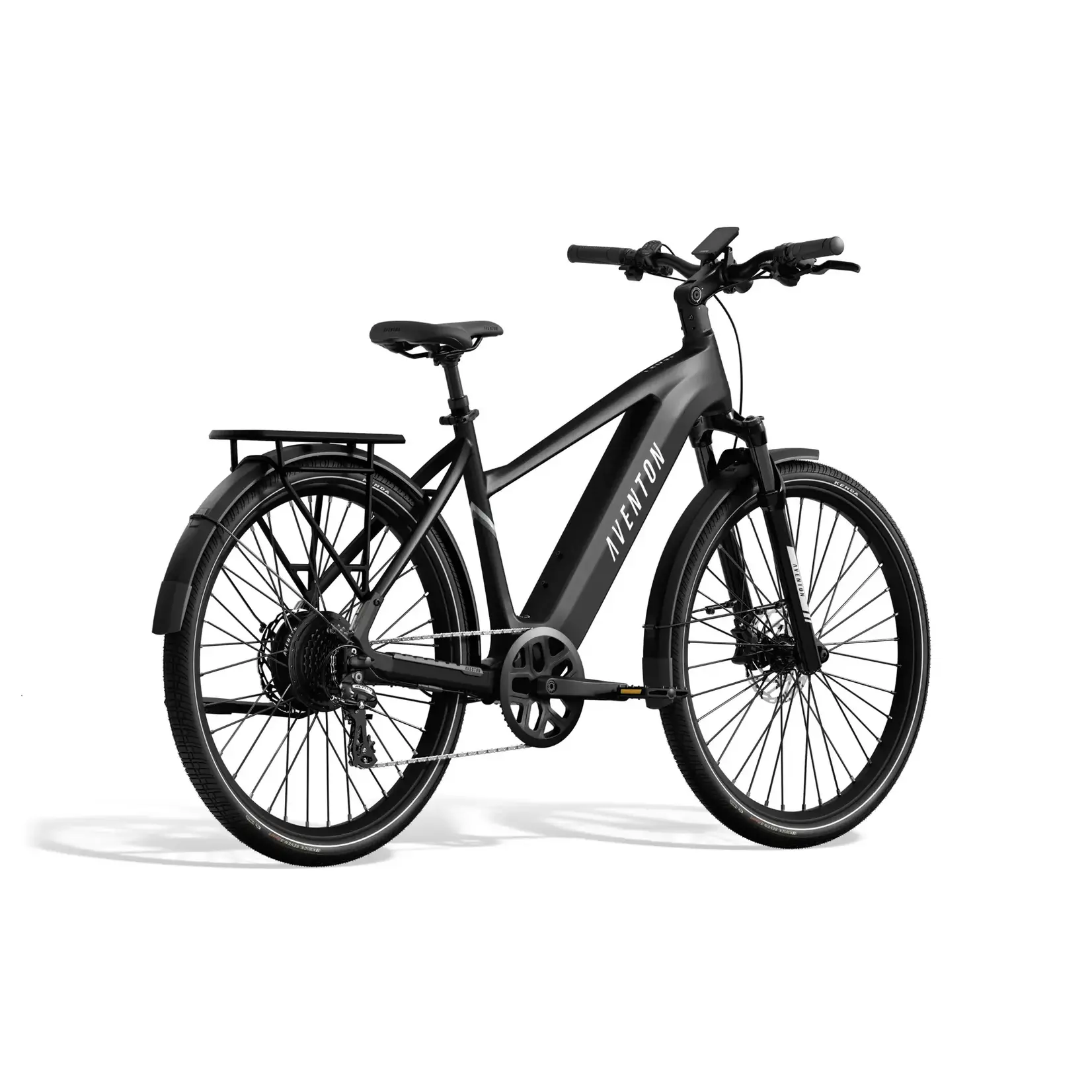

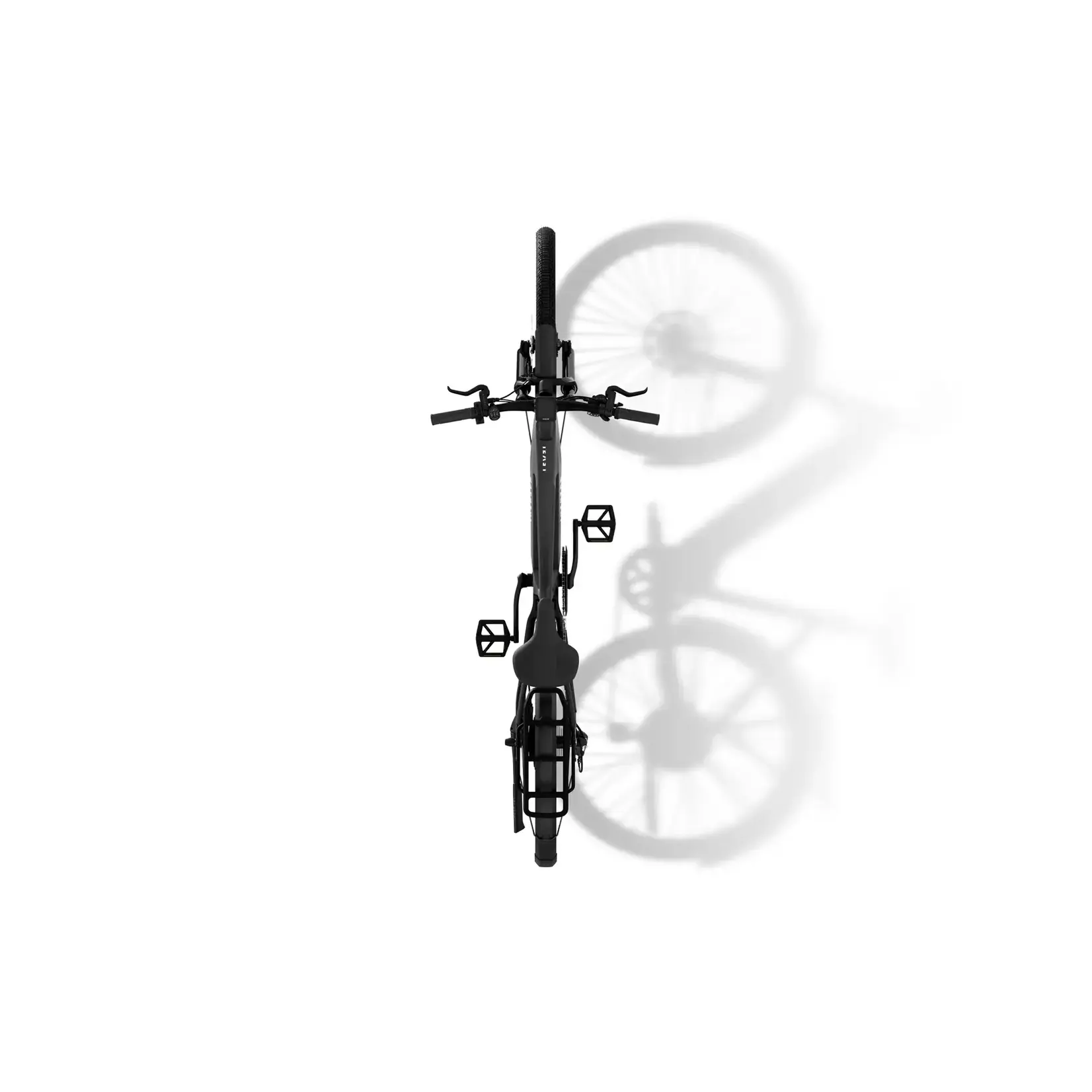

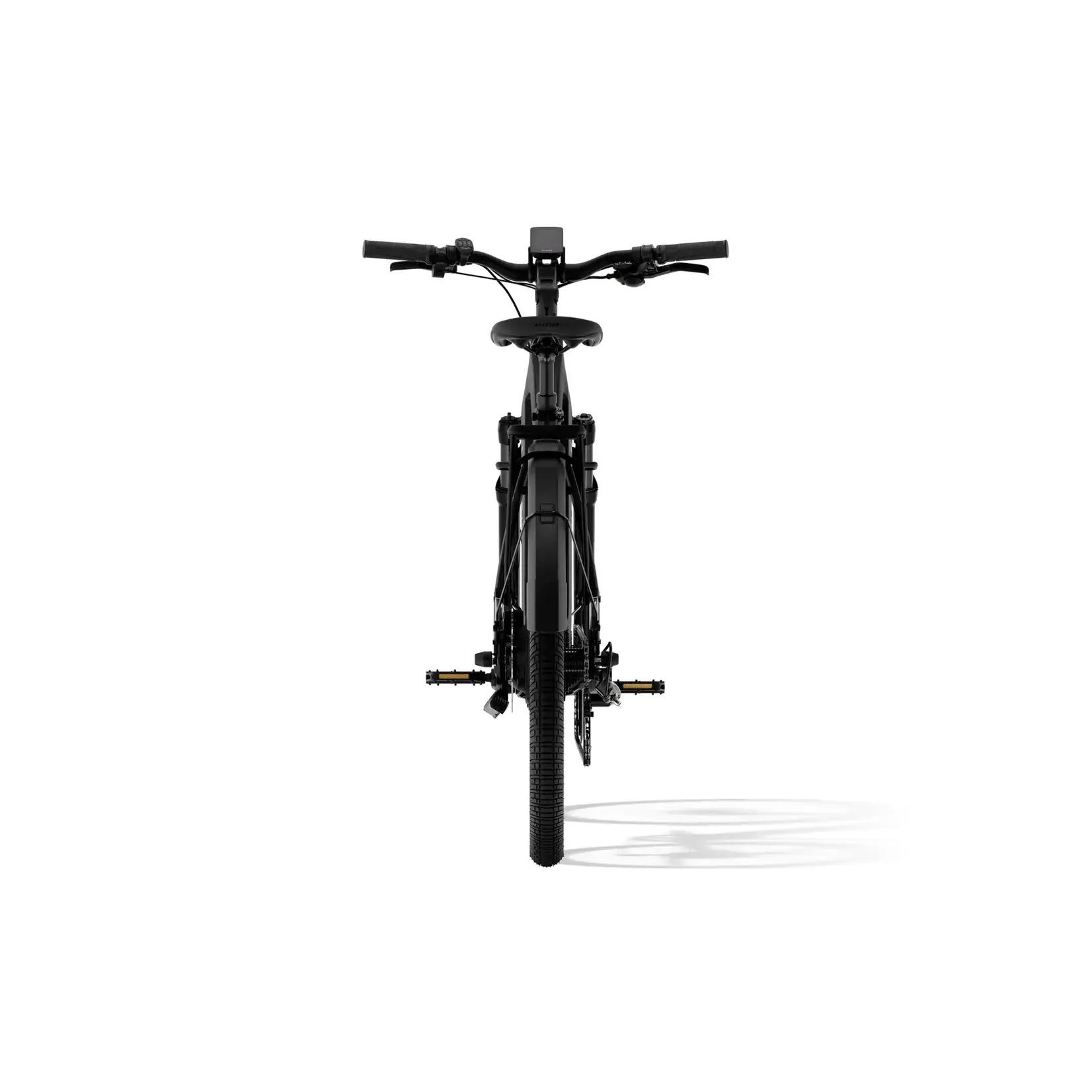

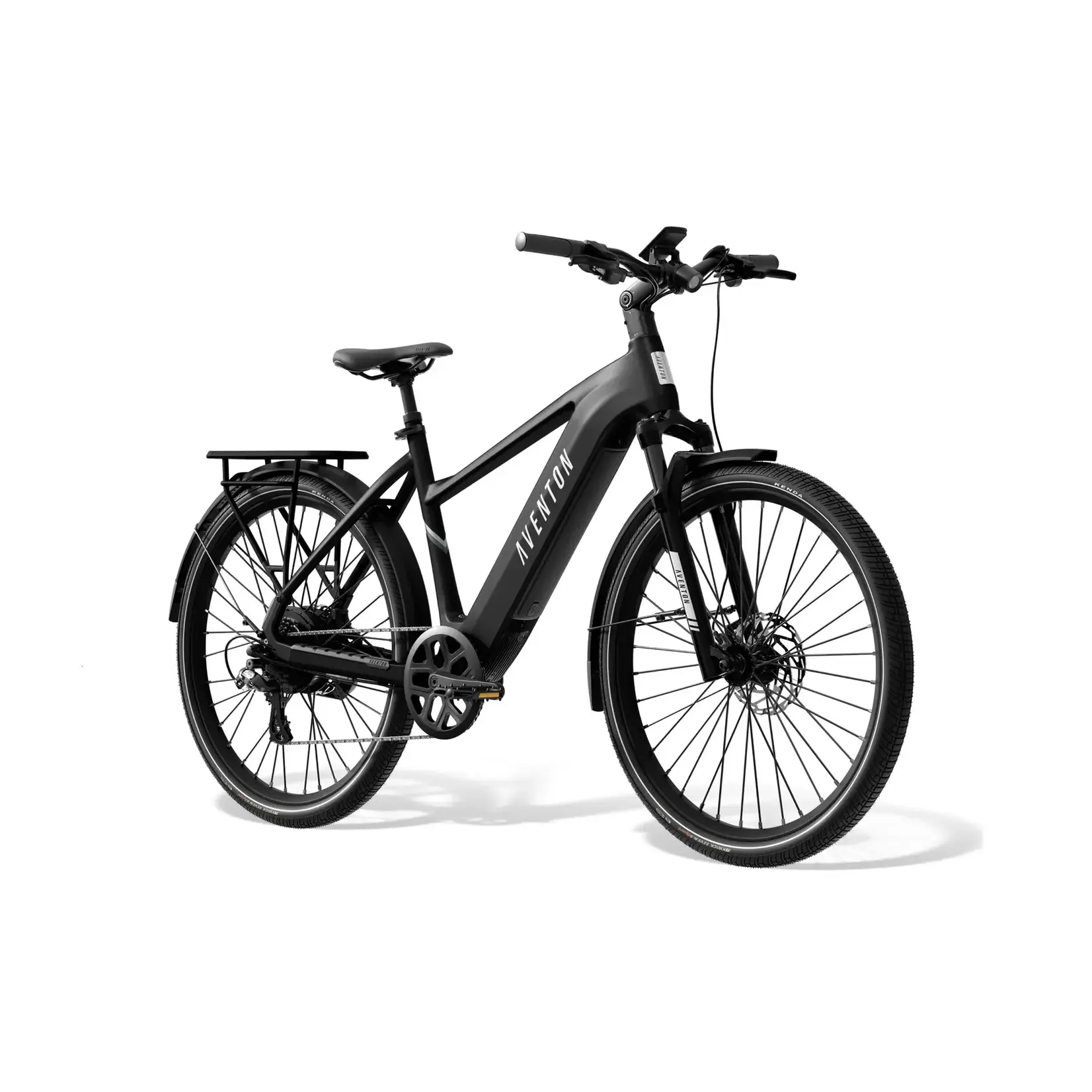

Aventon Level 3 Ebike Matte Black

$1,899.99
Excl. tax

Take your commutes to the next LEVEL. The all new Level 3 comes fully equipped with everything you need to trade your daily drives for daily rides. A rear rack and fenders ensures you can carry necessities while staying clean and dry during your rides.

The rating of this product is 0 out of 5

(0)
In stock (1)

A front suspension fork and suspension seat post provide maximum comfort on rougher terrain. Our ACU technology provides peace of mind with GPS tracking, auto-lock, unusual movement detection, alarm system, and much more to keep your bike safe and secure. Comfortable geometry paired with an adjustable stem ensure the perfect fit, while the implementation of Ride Tune capabilities along with adjustments to Level 3's motor power curves provide up to an additional 10 miles of range compared to its predecessor. Ditch the traffic, and elevate your daily commutes with the Level 3.



Size Chart:









TECHNICAL SPECIFICATIONS:


Level 3 Ebike:

Weight
67lbs

Total Weight Limit
300 lbs

Rider Height
5'3" - 6'4"

Ebike Class
Class 2 Ebike

Range
Up to 70 Miles

Battery Safety Certifications

Safety Certifications

Ideal Use
Commuting

Pedal Assist
3 Levels (with Ride Tune Customization)

Water Resistance
Bike - IPX5 // Components - IPX6

Frameset:

Frame
6061 Aluminum, Gravity Cast Front Triangle

Fork
Aventon Suspension Fork, 80mm travel, w/ lockout,coil spring. 15x100mm thru-axle, 43mm offset

Rear Spacing
142mm

Fork Spacing
110mm

Frame Style
Step-Over

Wheelset:

Front Wheel
27.5in, 13g, 36hole, double wall Aluminum, Thru axle, Schrader Valve, black

Rear Wheel
27.5in, 12g, 36hole, double wall Aluminum, Nutted Hub Drive Motor, Scharder Valve, black

Tires
Kenda Kwick Seven-5 Sport K1052-006 27.5 x 2.20

Ebike System:

Motor
36V, 500W (sustained), 864W (peak)

Motor Torque
60Nm

Display
Aventon BC280

Battery
Removable Internal Lithium-ion. 36V, 20Ah, 733Wh, LG 21700 cells

Battery Weight
8.7lbs

Controller
36V, 24A

Throttle
Aventon LH Handlebar Mounted

Sensors
Double Sided Bottom Bracket Torque Sensor

Charger
36V Output: 42V/ 4A

Charging time from 0% to 100%
5 hours

Lights
Front and rear lights integrated

Speed
Class 2


Brakes:

Front Brake
Magura AT-2 Hydraulic disc brake / Tektro HD-E3520 hydraulic disc brakes w/ EJ1 quick disconnect wire

Rear Brake
Magura AT-2 Hydraulic disc brake / Tektro HD-E3520 hydraulic disc brakes w/ EJ1 quick disconnect wire

Front Brake Rotor
Magura MDR-A 180mm 6 Bolt Rotor / Tektro 180mm 6 Bolt Rotor

Rear Brake Rotor
Magura MDR-A 180mm 6 Bolt Rotor / Tektro 180mm 6 Bolt Rotor


Drivetrain:

Rear Derailleur
Shimano Altus RD-M310

Shifter
Shimano 8 Speed Trigger SL-M315-8R

Chain
7/8 speed 120L

Cassette
12-32T / 8 Speed Shimano CS HG200-8

Chainring
48T

Crankset
3pc, 170mm crank arm

Bottom Bracket
Square Taper, Sealed, double sided Torque Sensor 83mmx158.5mm

Pedals
9/16" Composite Platform


Cockpit:

Saddle
Aventon Saddle

Seatpost
30.9mm Aventon Suspension Seatpost with 50mm travel

Seatpost Clamp
34.9mm

Handlebars
Aluminum 31.8mm, 680mm

Grips
Aventon Lock on grips

Headset
Sealed Bearing Headset

Included Accessories
Fenders Included
Rear Rack Included

Rear Rack Weight Limit
60lbs



Technical Overview
The Level 3 comes out of the box as a Class 2 ebike, with pedal assist and throttle. It can be unlocked to a Class 3 ebike. The Level 3 will also operate with the throttle unplugged and removed, should you want to ride in an area where throttles are prohibited or only Class 1 bikes are permitted. Aventon ebikes are built to the IPX5-rated standard. An IPX5 rating means the bike is protected against low-pressure water jets from any direction. This provides a moderate level of water resistance, allowing you to ride in light to moderate rain or through small puddles. However, IPX5 does not mean waterproof—Aventon ebikes are not designed for full submersion. Avoid using a pressure washer or high-pressure sprayer to clean your ebike, as pressurized water can still damage components. *Max range determined using PAS 1 throughout flat terrain with a rider weight of 160 lb.
