Product image slideshow Items

  • Specialized Diverge Sport Carbon
  • Specialized Diverge Sport Carbon

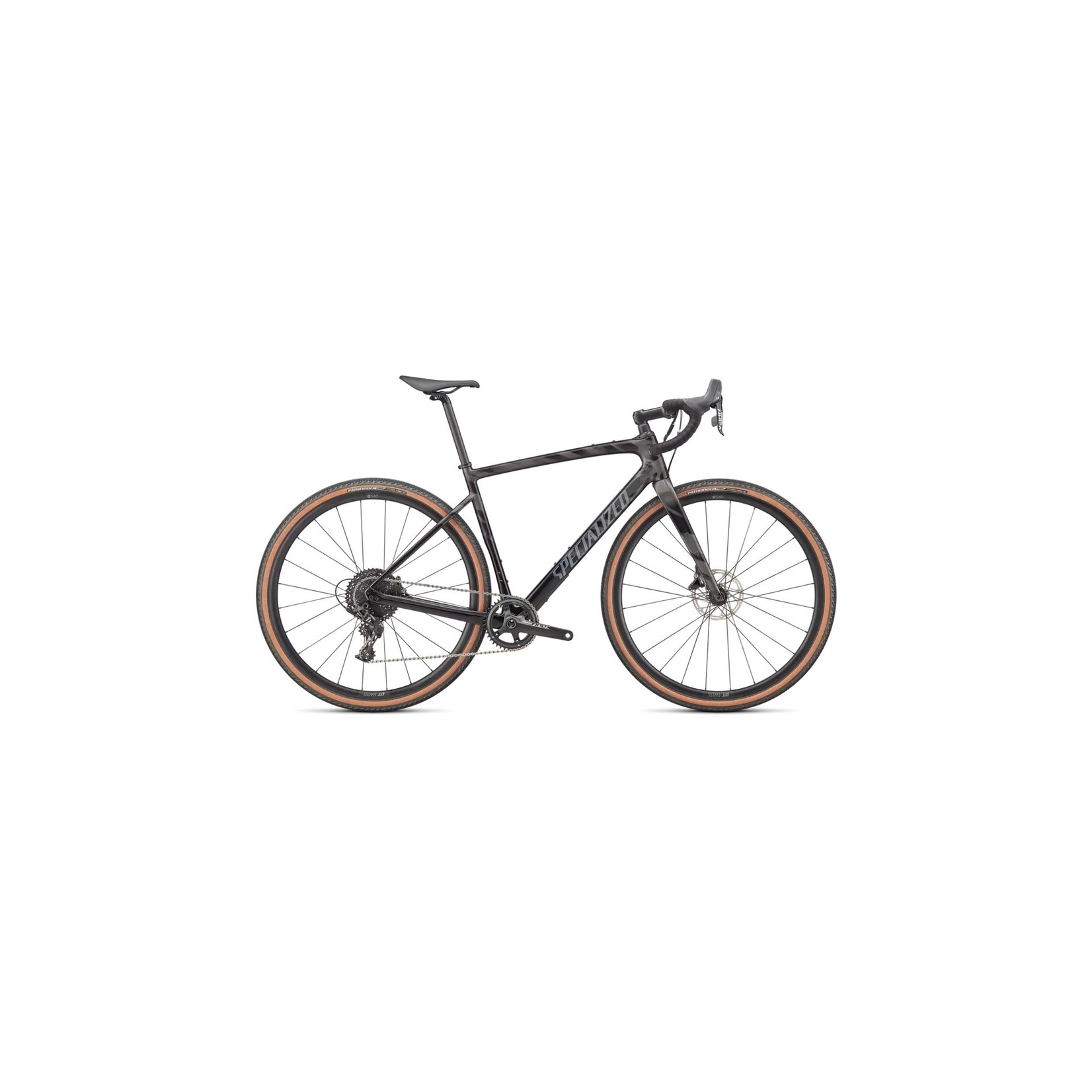

Specialized Diverge Sport Carbon

$3,500.00
Excl. tax

Whether your goal is to escape on gravel back roads, far from cars and crowds, or drop the hammer at the front of your favorite gravel race, no bike does it better than the new Diverge.

The rating of this product is 0 out of 5

 (0)
Out of stock
Size Chart:
Size Chart


Technical Specifications:


  • FRAMESET

Frame

Specialized Diverge FACT 8r carbon, Future Shock suspension, threaded BB, internal routing, 12x142mm thru-axle, flat-mount disc

Seat Binder

Specialized Alloy, 30.8mm

  • Suspension

Fork

Future Shock 1.5 w/Smooth Boot, FACT carbon, 12x100 mm thru-axle, flat-mount

  • COCKPIT

Handlebars

Specialized Adventure Gear Hover, 103mm drop x 70mm reach x 12º flare

Stem

Future Stem, Comp

Tape

Roubaix S-Wrap

Saddle

Body Geometry Power Sport, steel rails

SeatPost

Carbon, single-bolt, 27.2mm

  • BRAKES

Front Brake

SRAM Apex, hydraulic disc, 160mm G2 CenterLine rotor

Rear Brake

SRAM Apex, hydraulic disc, 160mm G2 CenterLine rotor

  • DRIVETRAIN

Shift Levers

SRAM Apex, hydraulic

Rear Derailleur

SRAM Apex 1, long cage, 11-speed

Cassette

Sunrace, 11-speed, alloy spider, 11-42t

Crankset

SRAM Apex 1x

Chainrings

40T

Bottom Bracket

Sram GXP

Chain

KMC X11 Extra Lightweight, 11-speed

  • WHEELS & TIRES

Front Wheel

DT Swiss G540 rim, 24mm internal width, tubeless ready, 24h, Specialized full sealed bearing thru axle hub, centerlock disc, DT Swiss Champion 14G stainless steel spokes, DT Swiss brass nipples

Rear Wheel

DT Swiss G540 rim, 24mm internal width, tubeless ready, 24h, Specialized full sealed bearing thru axle hub, centerlock disc, DT Swiss Champion 14G stainless steel spokes, DT Swiss brass nipples

Front Tire

Pathfinder Pro 2BR, Tan sidewall, 700x42

Rear Tire

Pathfinder Pro 2BR, Tan sidewall, 700x42

Inner Tubes

700x28/38mm, 48mm Presta valve

Geometry:

Stack 568 571 577 592 610 634 659 684
Reach 357 365 374 383 392 401 410 419
Head Tube Length 99 99 104 116 133 159 185 209
Head Tube Angle 69.5 70 70.5 71.25 71.75 71.75 71.75 72.25
BB Height 270 270 270 270 270 270 270 270
BB Drop 80 80 80 80 80 80 80 80
Trail 72 69 66 61 57 57 57 54
Fork Length, Full 390 390 390 390 390 390 390 390
Fork Rake/Offset 55 55 55 55 55 55 55 55
Front Center 604 607 614 620 630 647 664 675
Chainstay Length 425 425 425 425 425 425 425 425
Wheelbase 1016 1019 1026 1032 1042 1059 1076 1088
Top Tube Length, Horizontal 515 529 542 558 573 589 605 628
Bike Standover Height 683 700 725 754 779 805 832 859
Seat Tube Length 363 390 430 470 500 530 560 590
Seat Tube Angle 74.5 74 73.75 73.5 73.5 73.5 73.5 73
