DETAILS

• Platform

  Quick CX
• Model Name

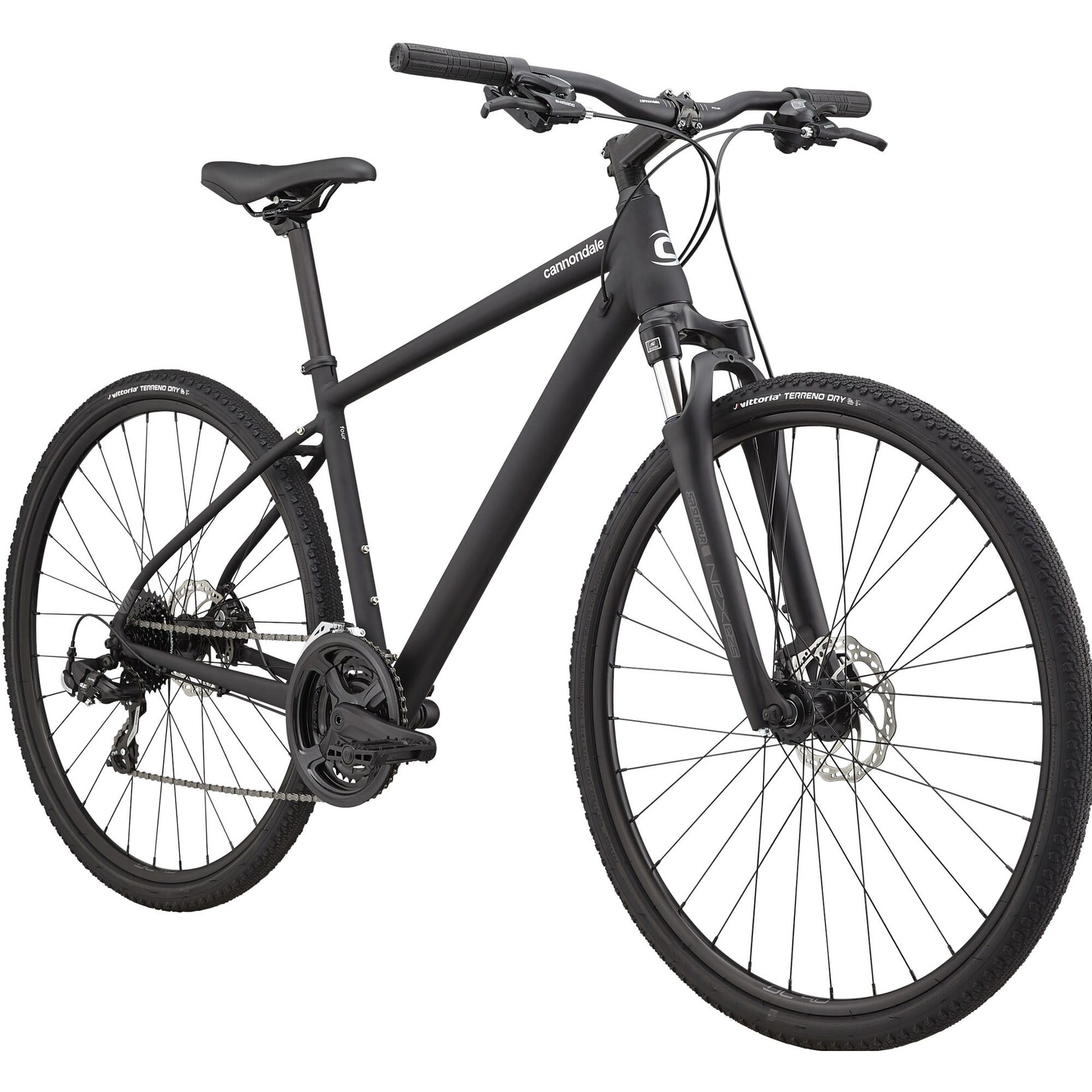

  Quick CX 4
• Model Code

  C31451M

FRAMESET

• Frame

  SmartForm C3 Alloy, SAVE, tapered head tube, Straightshot hidden cable routing, flat mount disc, rack/fender mounts, 360° reflectivity

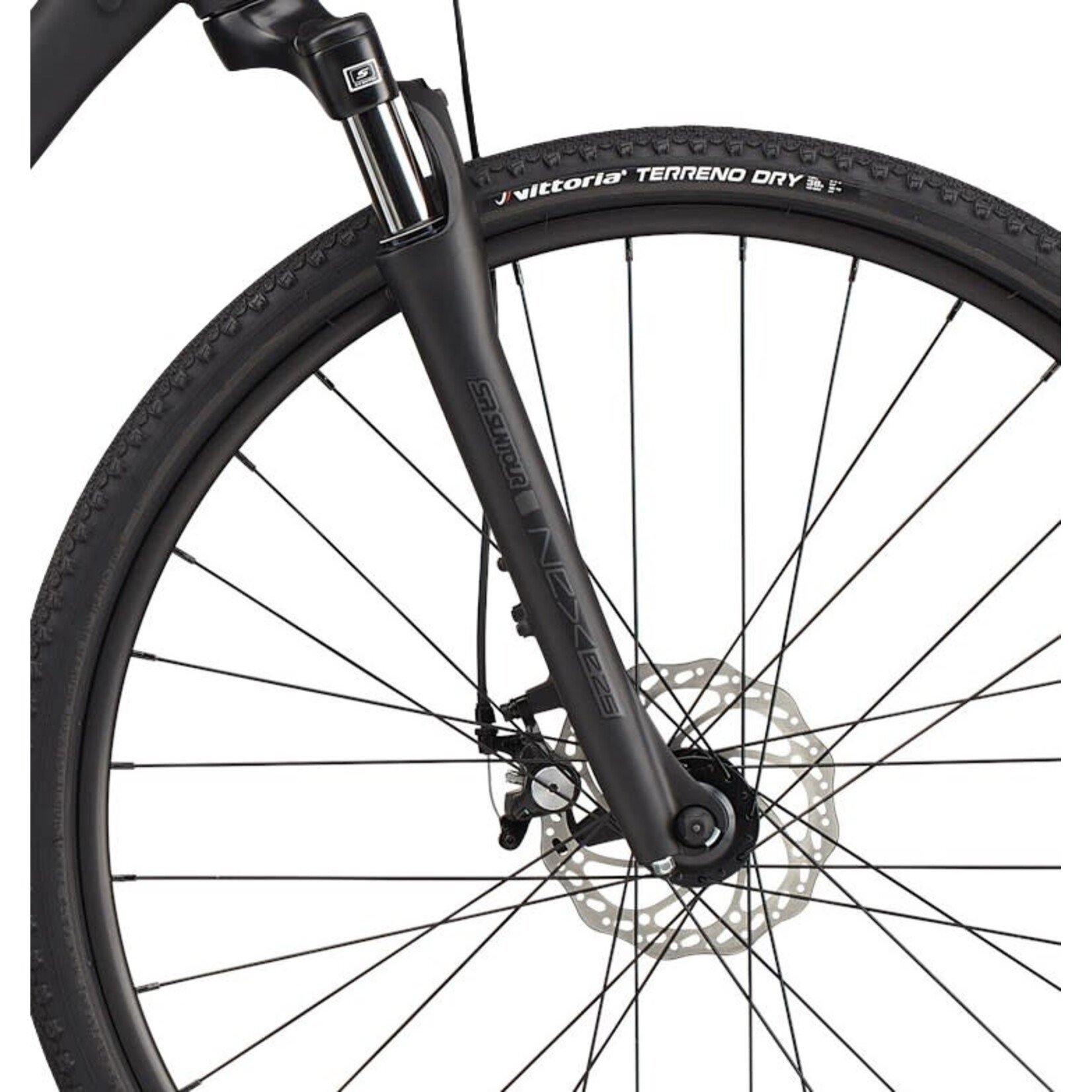

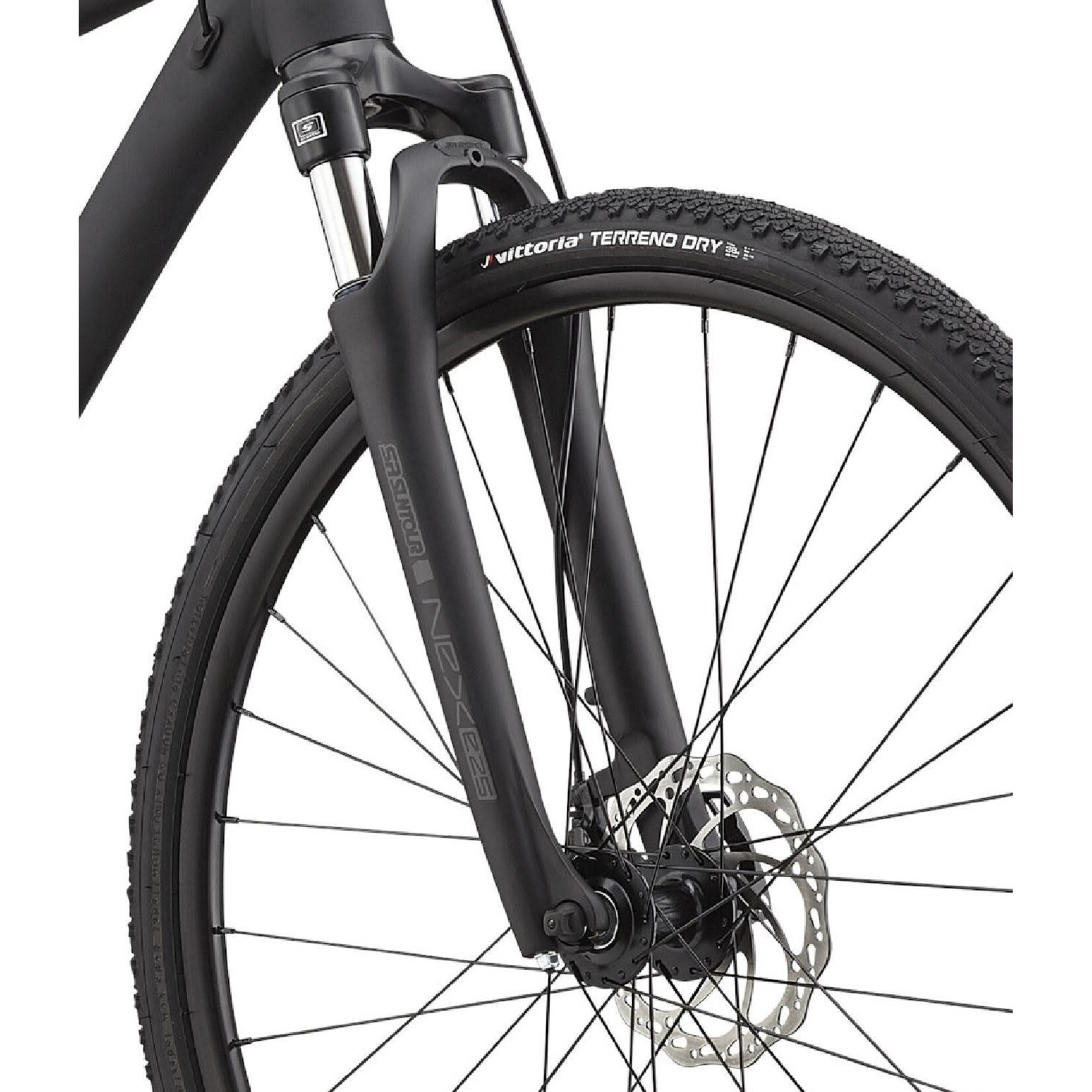

• Fork

  Suntour NEX-E25, 63mm, coil, custom crown
• Headset

  Semi-Integrated, Tapered

DRIVETRAIN

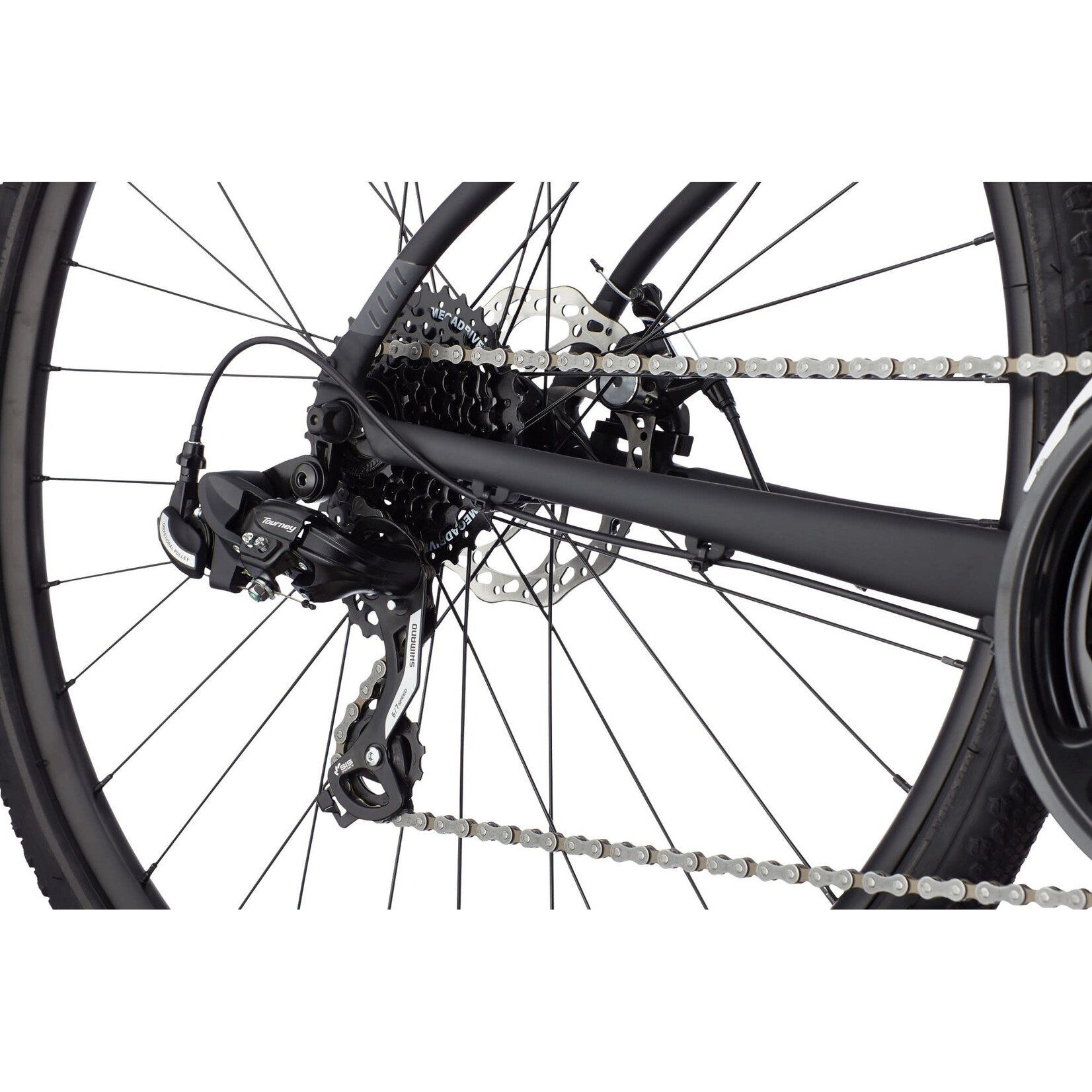

• Rear Derailleur

  microSHIFT M26L
• Front Derailleur

  microSHIFT Dual Pull Compact, Band Clamp
• Shifters

  microSHIFT, 3x7-speed
• Chain

  KMC Z7, 7-speed

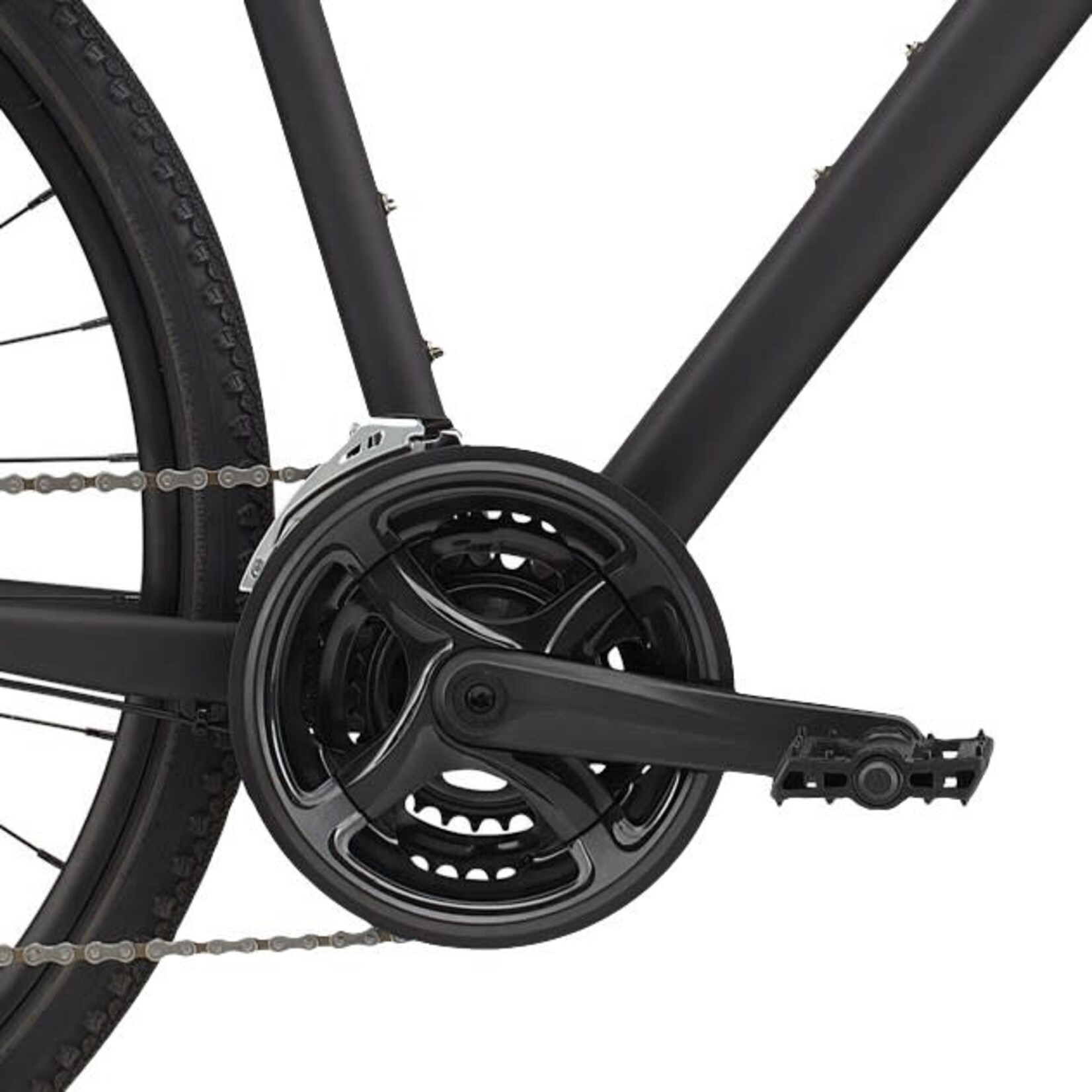

• Crank

  Prowheel, 48/38/28
• Rear Cogs

  Sunrace, 14-34, 7-speed
• Bottom Bracket

  Cartridge, square taper

BRAKES

• Brakes

  Promax mechanical disc, 160/160mm rotors
• Brake Levers

  Promax

WHEELS

• Rims

  DC 4.0, double wall w/eyelet, 32h
• Front Hub

  Alloy, Sealed, QR
• Rear Hub

  Alloy, Sealed, QR
• Spokes

  Stainless Steel, 14g
• Tires

  Vittoria Terreno Dry, 700x40c, reflective strip
• Tire Size

  40
• Wheel Size

  700c
• Front Tire

  Vittoria Terreno Dry, 700x40c, reflective strip
• Rear Tire

  Vittoria Terreno Dry, 700x40c, reflective strip

COMPONENTS

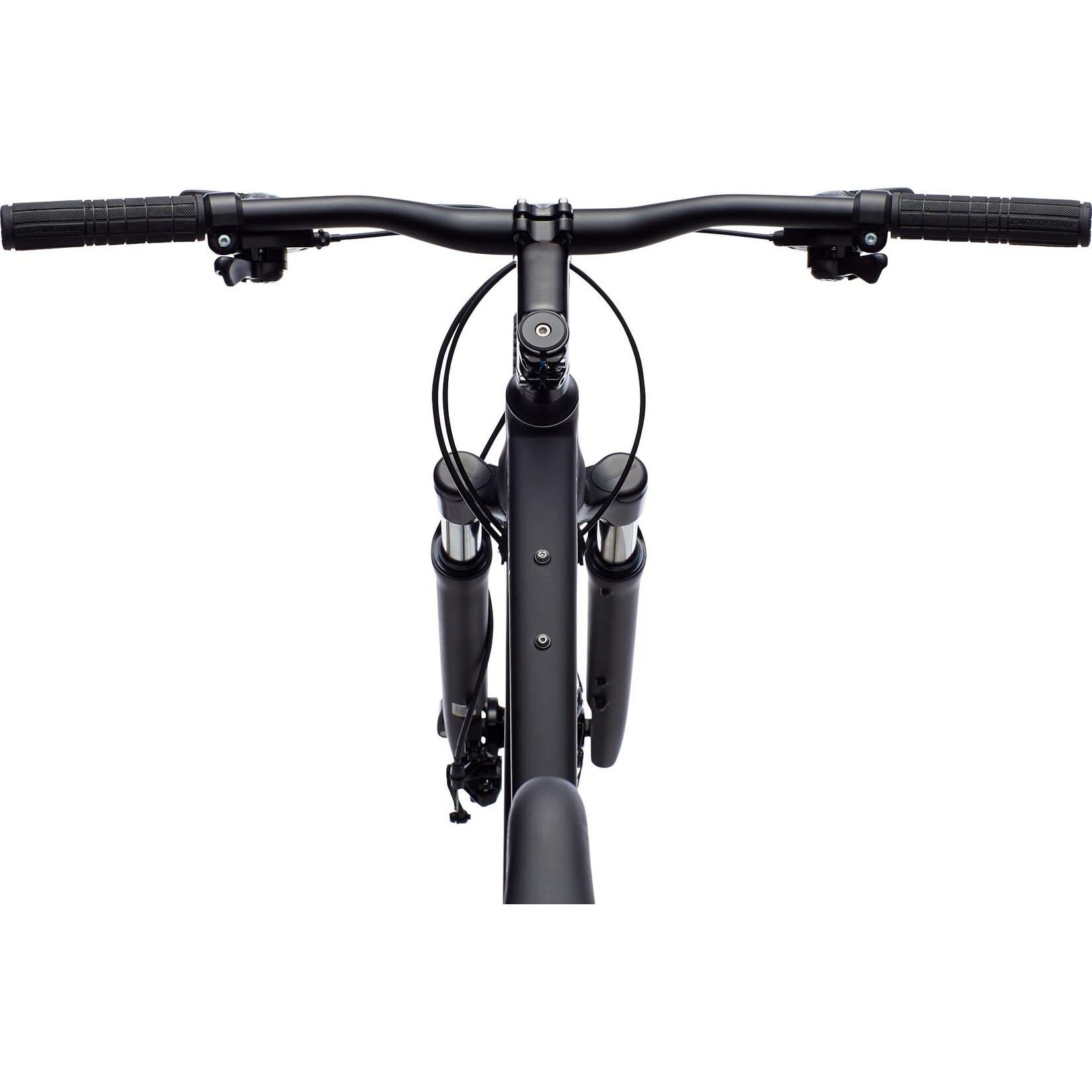

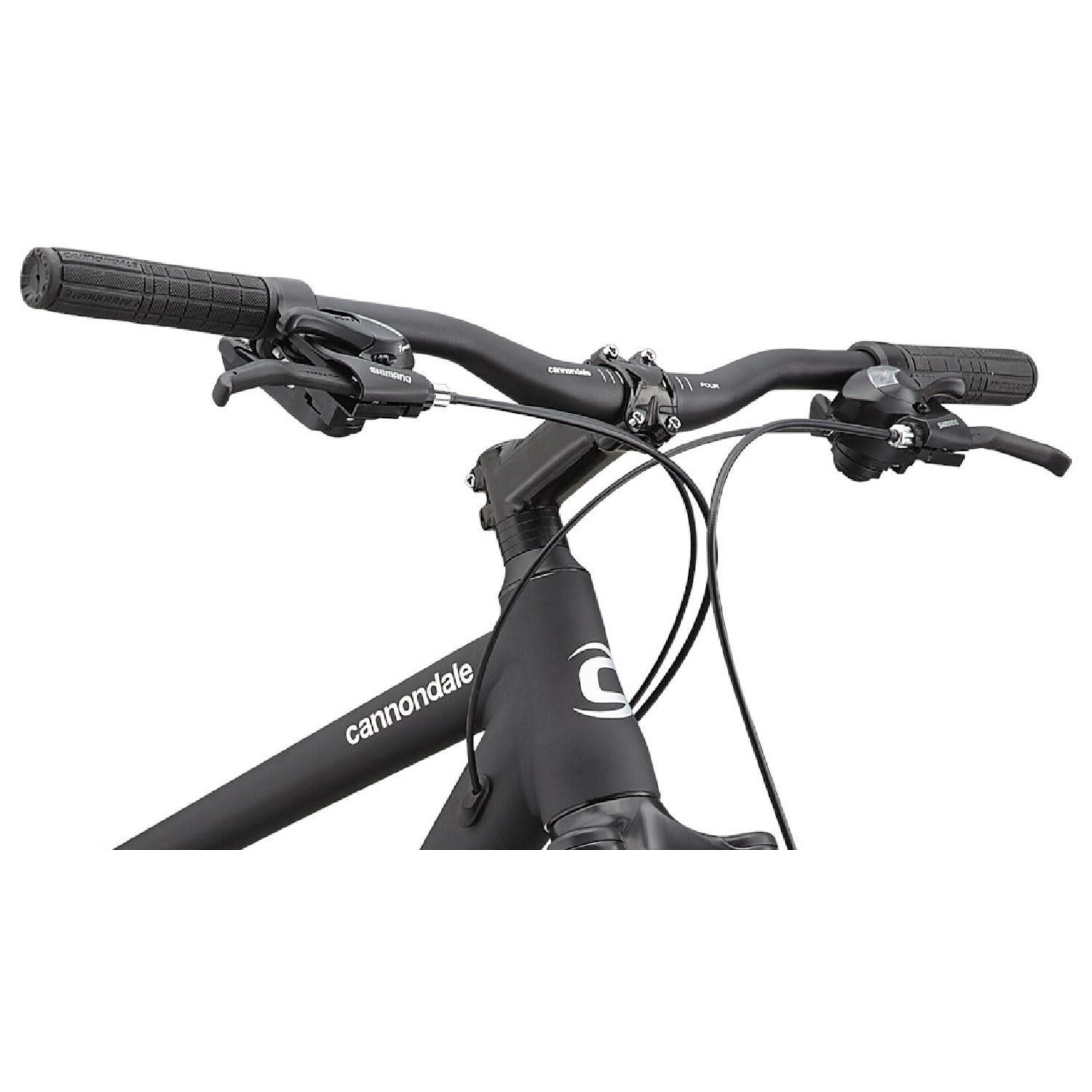

• Handlebar

  Cannondale Riser, 6061 Alloy, 25mm rise, 8° sweep, 6° rise, 700mm
• Stem

  6061 Alloy, 31.8, 8°
• Grips

  Cannondale Dual-Density

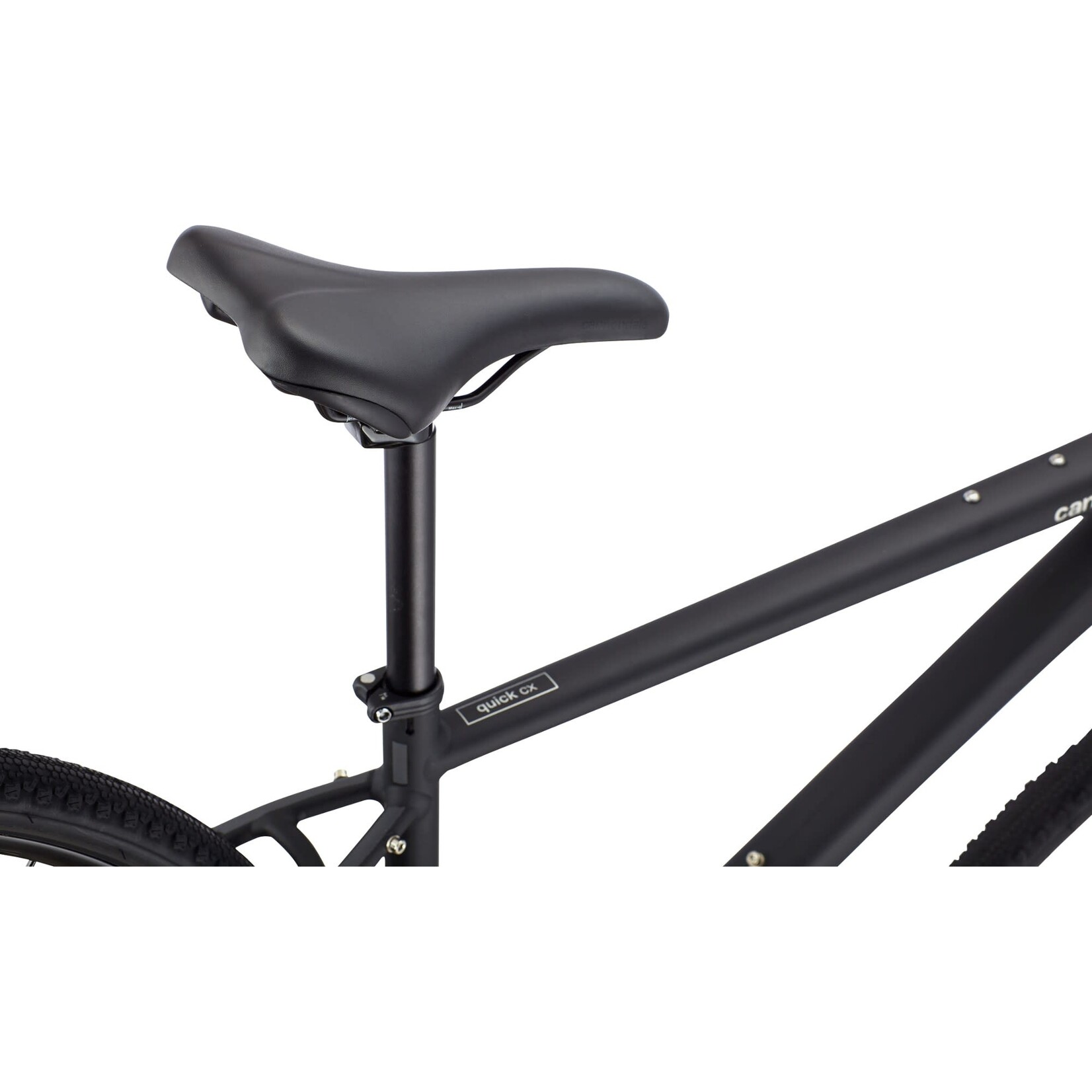

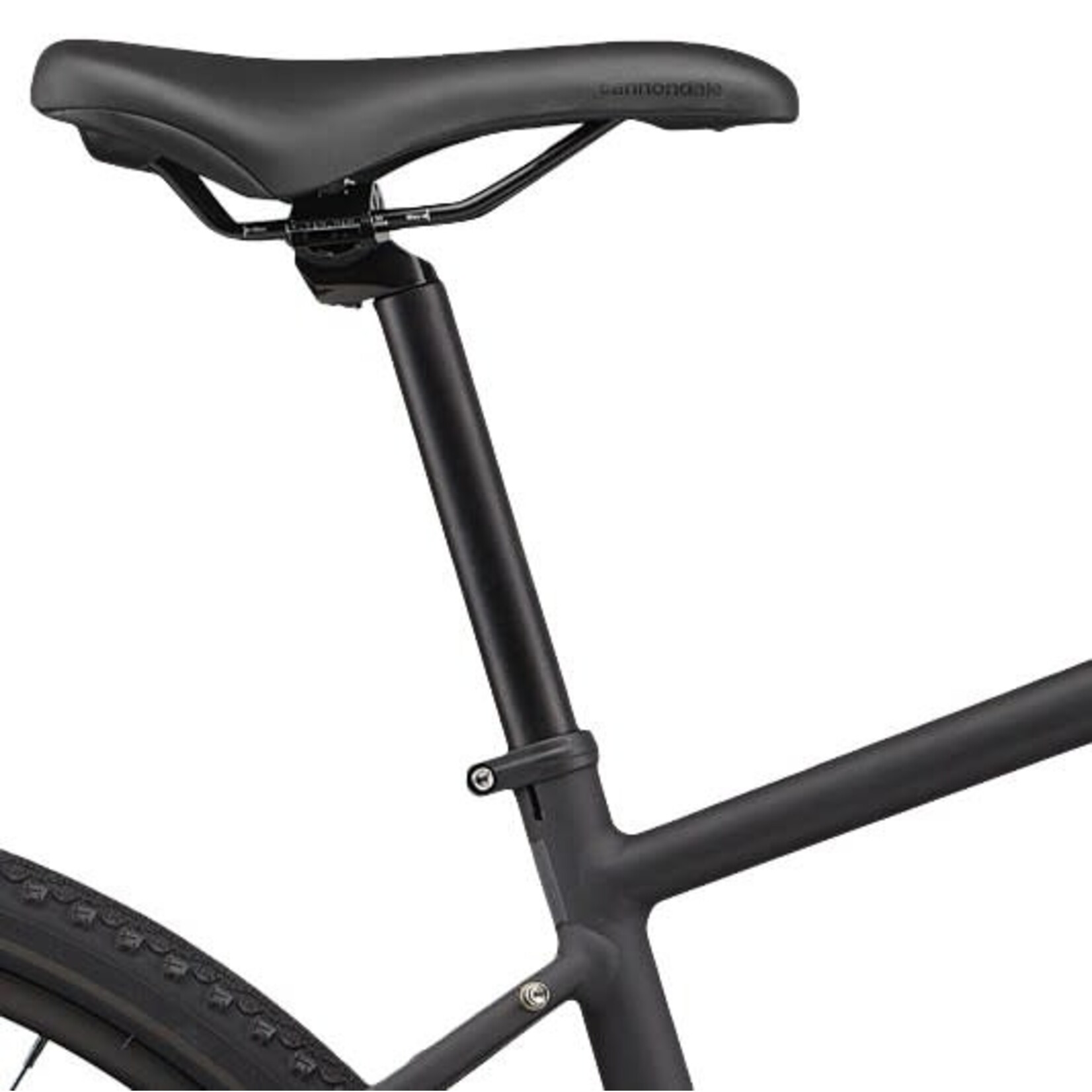

• Saddle

  Cannondale Fitness Ergo Double Density
• Seatpost

  6061 Alloy, 27.2x350mm
